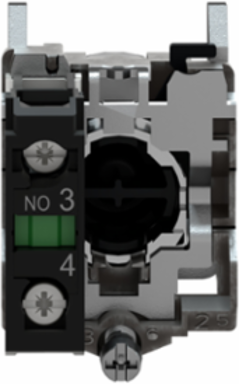

Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66

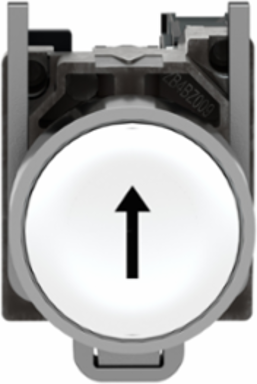

Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66

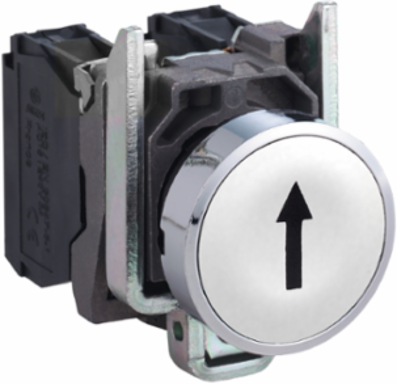

Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66

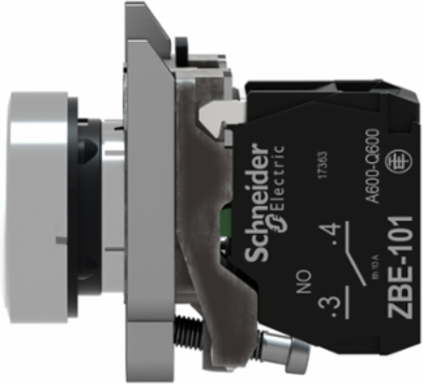

Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66

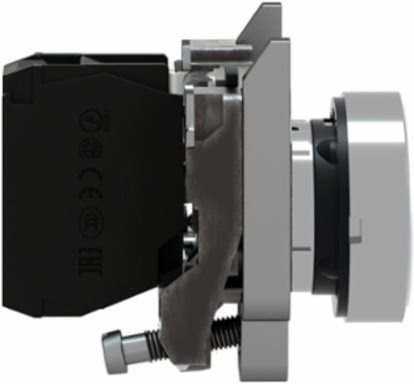

Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66
Schneider Electric

Schneider Electric XB4BA3341 Harmony XB4 Metal Push Button 22mm Spring Return with Up Arrow, IP66

  • MPN: XB4BA3341
  • PPN: SCH-XB4BA3341
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $43.74

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4 modular white push button operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with a "Up arrow" symbol. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony XB4
    Type Of Operator
    spring return
    Shape Of Signaling Unit Head
    round
    Head Type
    standard
    Contacts Type And Composition
    1 NO
    Bezel Material
    chromium plated metal
    Operator Profile
    white flush, up arrow black)
    Mounting Diameter22 mm
    Product Or Component Typepush-button
    Fixing Collar Materialzamak
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Sale Per Indivisible Quantity1
    Contact Operationslow-break
    Device Short NameXB4

    Complementary

    Contacts Usage
    standard contacts
    Short-Circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Contacts Material
    silver alloy (Ag/Ni)
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Mechanical Durability
    10000000 cycles
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Operating Force3.8 N NO changing electrical state
    Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
    Positive Openingwithout
    Net Weight0.08 kg
    Device Presentationcomplete product
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

    Environment

    Product Certifications
    CSA || UL listed || GL || BV || DNV || LROS (Lloyds register of shipping)
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Overvoltage Category
    class I IEC 60536
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    StandardsIEC 60947-5-1 || IEC 60947-5-5 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Nema Degree Of ProtectionNEMA 13 || NEMA 4X

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1808008EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1808008EN
