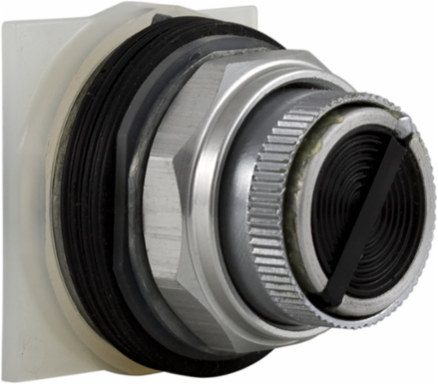

Schneider Electric 9001KQ14B Push-button Switch, Harmony 30mm, Metal, 2 Positions, NEMA 4/13 Rated
- MPN: 9001KQ14B
- UPC: 785901875130
- PPN: SCH-9001KQ14B
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Harmony 9001K range, an offer of selector pushbuttons. The round selector pushbutton provides two positions, diameter of 30mm. It is a NEMA 4/13 rated product. It is suitable for use in automotive, machine tools, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, metallurgy and industrial applications. It is easily installed into 1/16inch to 1/4inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Type Of Operator
- stay put, maintained
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Device Short Name
- K
- Operator Position Information
- 2 positions
- Product Or Component Type
- switch + push-button
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Local Publishable Date2026-03-25
Stocking FlagN
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Compositionwithout
Mounting Diameter30 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Pep CodeENVPEP2503027EN
Package Weight(Lbs)115.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/6/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- switch + push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- operator
