Square D

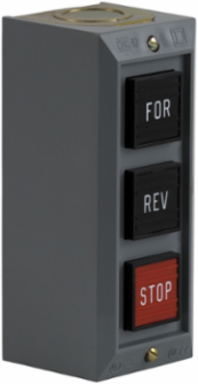

Square D 9001BG302 Push button, Type B, standard duty control station, 5A, 600 VAC, FORWARD/REVERSE/STOP, NEMA 1

Push button, Type B, standard duty control station, 5A, 600 VAC, FORWARD/REVERSE/STOP, NEMA 1
  • MPN: 9001BG302
  • UPC: 785901390305
  • PPN: SCH-9001BG302

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$205.38/ EA

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a FORWARD push button with a normally open and a normally closed contact. It has a REVERSE push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1304002
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1304002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Key Specifications

Range Of Product
Harmony 9001B
Device Short Name
9001BG
Product Or Component Typecomplete control station

Complementary

Connections - Terminals
screw clamp terminal
Control Station Composition
3 push-buttons FORWARD-REVERSE-STOP
Type Of Installation
indoor
Contacts Type And Composition2 NO + 3 NC
[Ie] Rated Operational Current5 A 600 V
Device Mountingsurface

Environment

Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
Nema Degree Of Protection
NEMA 1
Environmental Characteristicstandard environment
