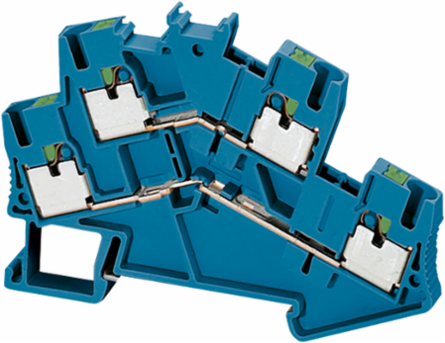

Schneider Electric NSYTRP24DBL Linergy TR Terminal Block, 4 Points, 2-Level, 2.5 mm², Set of 50
- MPN: NSYTRP24DBL
- PPN: SCH-NSYTRP24DBL
CAD
$14.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for versatility in automation and control systems, the Linergy TR Terminal Block from Schneider Electric offers a reliable solution for connecting multiple conductors. This set of 50 terminal blocks features a compact two-level design, accommodating up to four points with a cross-section of 2.5 mm², making it ideal for various wiring configurations. Its robust construction ensures durability and efficiency in electrical installations, while the carefully designed layout allows for easy integration into your projects. These terminal blocks are an essential component for enhancing connectivity and organization in control panels and electrical systems.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 20 A CSA, 20 A cURus, 22 A EN/IEC 60947-7-1, 19.5 A
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
- Height
- 2.17 in (55 mm)
- Number of Measurement Input
- 4
- Terminal Block Level
- 2
- Terminal Block Type
- Passthrough
- Wire Stripping Length
- 0.39 in (10 mm)
- Mounting Mode
- Clip-on
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Surface Resistance
- 1000 GΩ IEC 60093, VDE 0303-T30
- Dielectric Constant
- 3.7 at 1 MHz
- Dielectric Strength
- 1000 V IEC 60243-1
- Product Certifications
- LR, EAC, CSA, GL, cURus, VDE
- China RoHS Regulation
- Pro-active declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- Product Compatibility
- Spacial enclosures
- Color
- Blue
- Product Or Component Type
- Terminal block
- Product Name
- Linergy TR
- Accessory / Separate Part Category
- Connection accessory
Rated Operational Voltage600 V CSA, 500 V EN/IEC 60947-7-1, 440 V, 600 V cURus
Length3.07 in (78 mm)
Width0.20 in (5.2 mm)
Number of Terminals2
Connection PositionInclined
Cable Cross Section0.14-2.5 mm² flexible without cable end, 0.14-4 mm² solid with cable end, 0.2-2.5 mm² flexible with cable end, 0.2-2.5 mm² solid without cable end
Net Weight14.3 g
Connections - Terminals1 x push-in upstream, 1 x push-in downstream
Flame RetardanceV0 0.8 mm UL 94
Resistivity10000 MΩ·m IEC 60093, VDE 0303-T30
Dielectric Loss0.01 at 1 MHz IEC 60250, VDE 0303-T4
RoHS Exemption InformationYes
EU RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Mercury FreeYes
Reach Free Of SVHCYes
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Country of OriginPoland
Device Short NameTRP
RangeLinergy
Tool TypeConnection without tool, disconnection flat screwdriver
