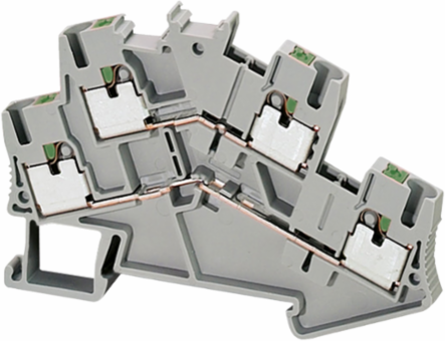

Schneider Electric NSYTRP24D Linergy TR Terminal Block, 4 Points, 2.5 mm², 2-Level, Grey, Set of 50
- MPN: NSYTRP24D
- PPN: SCH-NSYTRP24D
CAD
$14.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for advanced automation and control applications, these terminal blocks from Schneider Electric are designed to ensure reliable connections and efficient wiring management. Each block offers four connection points and accommodates wire sizes of 2.5 mm², allowing for effective organization in multi-level configurations. With a sleek grey finish, the Linergy TR terminal blocks come in sets of 50, providing ample supply for extensive projects. Their durable construction supports streamlined installation and enhances the overall performance of your electrical systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 600 V CSA, 500 V EN/IEC 60947-7-1, 440 V, 600 V cURus
- Nominal Cross Section
- 2.5 mm²
- Number of Measurement Inputs
- 4
- Height
- 55 mm (2.17 in)
- Connection Type
- 1 x push-in upstream, 1 x push-in downstream
- Wire Size Range
- 0.14–4 mm² solid with cable end, 0.14–2.5 mm² flexible without cable end, 0.2–2.5 mm² solid without cable end, 0.8–2.5 mm² flexible with cable end
- Terminal Block Type
- Passthrough
- Material
- Polyamide 6/6 (insulating case), copper alloy (connector, screw, commoning link), chromium-nickel steel (spring)
- Dielectric Constant
- 3.7 at 1 MHz
- Resistivity
- 10000 MΩ·m
- Creep Resistance
- 500 CTI (> 400 kB)
- Ambient Air Temperature for Operation
- -40 to 130 °C (-40 to 266 °F) IEC 60216-1, VDE 0304-T21
- Compliance
- REACH SVHC Free, EU RoHS, China RoHS, Halogen Free Plastic Parts
- Mounting Mode
- Clip-on
- Range
- Linergy
- Colour
- Gray
- Country of Origin
- Poland
- Device Short Name
- TRP
Rated Current20 A CSA, 20 A cURus, 22 A EN/IEC 60947-7-1, 19.5 A
Number of Terminals2
Length78 mm (3.07 in)
Width5.2 mm (0.20 in)
Connection PositionInclined
Wire Stripping Length10 mm (0.39 in)
Terminal Block Level2
Dielectric Strength1000 V IEC 60243-1
Dielectric Loss0.01 at 1 MHz
Surface Resistance1000 GΩ
Flame RetardanceV0 0.8 mm UL 94
Product CertificationsCSA, LR, GL, cURus, VDE, EAC
Tool TypeConnection without tool, disconnection with flat screwdriver
Product CompatibilitySpacial enclosures
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Net Weight14.3 g
Product NameLinergy TR
Environmental DisclosureENVPEP2309019EN
