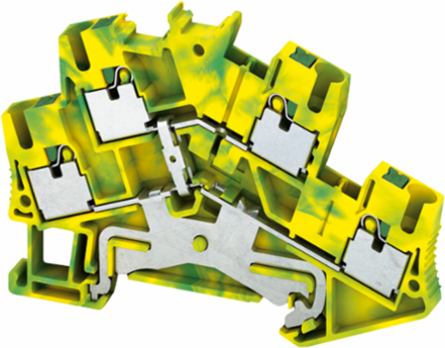

Schneider Electric NSYTRP24DPE Linergy TR Terminal Block, 4 Points, 2.5mm², Green-Yellow, Set of 50
- MPN: NSYTRP24DPE
- PPN: SCH-NSYTRP24DPE
CAD
$23.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This set of terminal blocks from Schneider Electric stands out for its functional design and reliability in automation and control applications. Each block accommodates four points and supports 2.5mm² wire connections, making them suitable for various wiring tasks. The distinct green-yellow color coding enhances visibility and safety in electrical installations. Ideal for those looking to streamline their terminal connections, this set includes 50 blocks, ensuring ample supply for extensive projects or routine maintenance tasks.
Documentation & Downloads
Specifications
Additional
- Terminal Block Type
- Protective earth
- Nominal Cross Section
- 2.5 mm²
- Dielectric Strength
- 1000 V IEC 60243-1
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093
- Flame Retardance
- V0 0.8 mm UL 94
- Number of Measurement Inputs
- 4
- Connection Position
- Inclined
- Tool Type
- Disconnection flat screwdriver, connection without tool
- Width
- 5.2 mm (0.20 in)
- Net Weight
- 19.9 g (0.70 oz)
- Color
- Green-yellow
- Environmental Compliance
- Green Premium, REACh SVHC free, EU RoHS, China RoHS, Toxic heavy metal free, Mercury free
- Product Compatibility
- Spacial enclosures
Number of Terminals2
Cable Cross Section0.14-4 mm² solid, 0.2-2.5 mm² flexible with or without cable end
Dielectric Loss0.01 at 1 MHz IEC 60250
Resistivity10000 MΩ·m IEC 60093
Creep Resistance500 CTI (> 400 kB) IEC 60093
Ambient Air Temperature for Operation-40 to 130 °C IEC 60216-1
Mounting ModeClip-on
Connections - Terminals1 x push-in upstream, 1 x push-in downstream
Length78 mm (3.07 in)
Height55 mm (2.17 in)
MaterialPolyamide 6/6 insulating case
Product CertificationsGL, cURus, LR, VDE, CSA, EAC
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Country of OriginPoland (PL)
