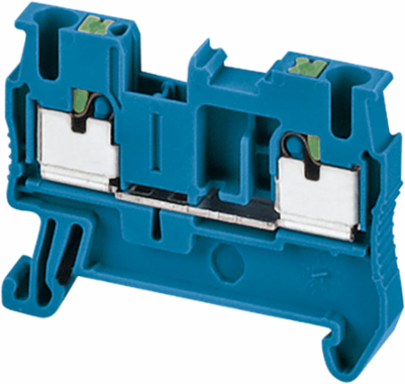

Schneider Electric NSYTRP22BL Linergy TR Terminal Block, 2 Points, 2.5mm², Set of 50, Blue
- MPN: NSYTRP22BL
- PPN: SCH-NSYTRP22BL
CAD
$3.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted by Schneider Electric, this terminal block set features the NSYTRP22BL Linergy model, designed for efficient connectivity in automation and control applications. Each block accommodates two points and supports wire sizes up to 2.5mm², ensuring reliable performance while simplifying wiring tasks. Packaged conveniently as a set of 50, these blue terminal blocks are perfect for enhancing organization and clarity in your electrical installations, making them an essential component for any professional or DIY electrical project.
Documentation & Downloads
Specifications
Additional
- Rated Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Ambient Operating Temperature
- -40 to 130 °C IEC 60216-1
- Height
- 36.5 mm (1.44 in)
- Wire Stripping Length
- 10 mm (0.39 in)
- Cable Cross Section
- 0.14-2.5 mm² flexible without cable end, 0.14-4 mm² solid with cable end, 0.2-2.5 mm² flexible with cable end, 0.2-2.5 mm² solid without cable end
- Mounting Mode
- Clip-on
- Creep Resistance
- 500 CTI (>400 kB) IEC 60093, VDE 0303-T30
- Dielectric Constant
- 3.7 at 1 MHz
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, VDE 0303-T4
- Flame Retardance
- V0 0.8 mm UL 94
- Environmental Compliance
- RoHS, REACh, China RoHS, free of SVHC
- Device Short Name
- TRP
- Terminal Block Type
- Passthrough
- Color
- Blue
- Tool Type
- Connection without tool, disconnection with flat screwdriver
- Accessory / Separate Part Category
- Connection accessory
- Toxic Heavy Metal Free
- Yes
Rated Current24 A EN/IEC 60947-7-1, 20 A CSA, 20 A cURus
Length48.5 mm (1.91 in)
Width5.2 mm (0.20 in)
Number of Terminals2
Connection Type1 x push-in upstream, 1 x push-in downstream
MaterialPolyamide 6/6 insulating case, copper alloy connector and screw and commoning link, chromium-nickel steel spring
Surface Resistance1000 GΩ IEC 60093, VDE 0303-T30
Resistivity10000 MΩ·m IEC 60093, VDE 0303-T30
Dielectric Strength1000 V IEC 60243-1
Product CertificationGL, IECEx, EAC, CSA, LR, VDE, ATEX, cURus
Product NameLinergy TR
Terminal Block Level1
Product CompatibilitySpacial enclosures, Prisma G, Prisma P, Prisma PH, Prisma Pack, Kaedra, Pragma, TeSys
Net Weight7.2 g
Connection PositionTop
Mercury FreeYes
Warranty18 months
