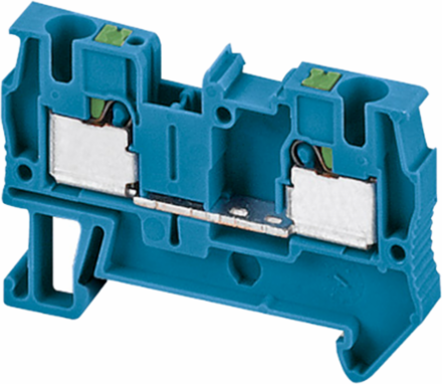

Schneider Electric NSYTRP42BL Linergy TR Terminal Block, 2 Points, 4mm², Blue, Set of 50
- MPN: NSYTRP42BL
- PPN: SCH-NSYTRP42BL
CAD
$3.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This set of 50 blue terminal blocks from Schneider Electric is designed for efficient wiring in various automation and control applications. Each terminal block accommodates two connection points and is rated for a wire cross-section of 4mm², making it suitable for a wide range of electrical tasks. The Linergy TR series exemplifies reliability and durability, ensuring secure connections that can withstand the demands of modern industrial environments. With a focus on ease of installation and versatility, these terminal blocks are an essential component for any professional involved in system design or panel building.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Cable Cross Section Range
- 0.2-6 mm²
- Length
- 56 mm (2.20 in)
- Height
- 36.5 mm (1.44 in)
- Terminal Block Type
- Passthrough
- Wire Stripping Length
- 12 mm (0.47 in)
- Net Weight
- 9.5 g
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Resistivity
- 10000 MΩ·m IEC 60093
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Dielectric Strength
- 1000 V IEC 60243-1
- EU RoHS Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Halogen Content
- Halogen free plastic parts
- Mercury Free
- Yes
- Reach Free Of SVHC
- Yes
- Country of Origin
- CN
- Range
- Linergy
- Product Type
- Terminal block
- Number Of Measurement Input
- 2
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A cURus
Ambient Air Temperature for Operation-40 to 130 °C
Width6.2 mm (0.24 in)
Number of Terminals2
Connection Type1 x push-in upstream, 1 x push-in downstream
Mounting Modeclip-on
MaterialPolyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 GΩ IEC 60093
Flame RetardanceV0 0.8 mm UL 94
Product CertificationsIECEx, LR, GL, ATEX, EAC, CSA, cURus
China RoHS RegulationPro-active declaration (out of legal scope)
Toxic Heavy Metal FreeYes
Reach RegulationFree of SVHC above threshold
ColorBlue
Device Short NameTRP
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Connection PositionTop
Accessory CategoryConnection accessory
Environmental DisclosureENVPEP2309019EN
