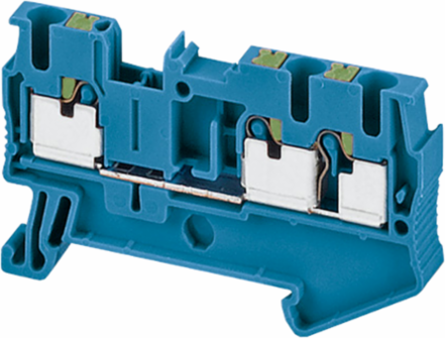

Schneider Electric NSYTRP23BL Linergy TR Terminal Block, 3 Points, 2.5 mm², 50 Set, Blue
- MPN: NSYTRP23BL
- PPN: SCH-NSYTRP23BL
CAD
$3.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's Linergy TR Terminal Block is designed for seamless integration in automation and control applications. Equipped with three connection points, this terminal block supports wire sizes up to 2.5 mm², providing flexible and reliable connections for your electrical systems. With a solid package of 50 sets and a striking blue color, this terminal block not only offers functional efficiency but also enhances organization within your terminal block setup. Its robust design ensures durability, making it an essential component for those seeking to optimize their electrical installations.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Nominal Cross Section
- 2.5 mmB2
- Wire Size Range
- 0.14-2.5 mmB2 flexible without cable end, 0.14-4 mmB2 solid with cable end, 0.2-2.5 mmB2 solid without cable end, 0.8-2.5 mmB2 flexible with cable end
- Width
- 0.20 in (5.2 mm)
- Net Weight
- 8.8 g
- Number of Connections
- 3
- Connection Position
- top
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector and screw), Copper alloy (commoning link), Chromium-nickel steel (spring)
- Dielectric Strength
- 1000 V IEC 60243-1
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Surface Resistance
- 1000 G96 IEC 60093
- Ambient Air Temperature for Operation
- -40 to 130 B0C IEC 60216-1, VDE 0304-T21
- Reach Regulation
- Free of Substances of Very High Concern
- China RoHS Regulation
- Pro-active China RoHS declaration (out of scope)
- Mercury Free
- Yes
- Halogen Content
- Halogen free plastic parts
- Color
- Blue
- Warranty
- 18 months
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
- Range
- Linergy
- Device Short Name
- TRP
Line Rated Current24 A EN/IEC 60947-7-1, 20 A CSA, 20 A cURus
Tool Typeconnection without tool, disconnection flat screwdriver
Length2.38 in (60.5 mm)
Height1.44 in (36.5 mm)
Terminal Block Typepassthrough
Connections - Terminals1 x push-in upstream, 2 x push-in downstream
Mounting Modeclip-on
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz IEC 60250
Resistivity10000 M96.m IEC 60093
Creep Resistance500 CTI (> 400 kB) IEC 60093
ComplianceVDE, GL, EAC, cURus, IECEx, LR, ATEX, CSA, RoHS
REACH Free of SVHCYes
EU RoHS DirectivePro-active compliance (product out of scope)
Toxic Heavy Metal FreeYes
Sustainable Offer StatusGreen Premium product
Country of OriginChina
Product Or Component Typeterminal block
Product CompatibilitySpacial enclosures
Product NameLinergy TR
Accessory / Separate Part Categoryconnection accessory
