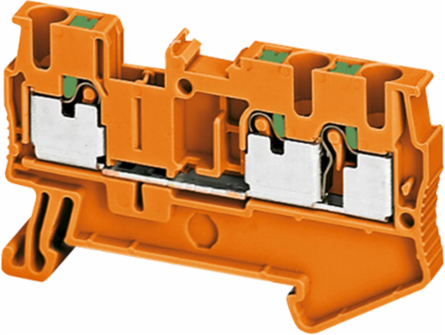

Schneider Electric NSYTRP23AR Linergy TR Terminal Block, 3 Points, 2.5mm², Set of 50
- MPN: NSYTRP23AR
- PPN: SCH-NSYTRP23AR
CAD
$3.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Linergy TR Terminal Block is engineered for seamless integration in automation and control applications, offering a reliable solution for electrical connections. Designed with three points and a capacity of 2.5mm², this terminal block ensures efficient and secure junctions for various wiring setups. The set includes 50 units, making it an ideal choice for large projects or ongoing installations, allowing for consistent performance across all connections. With its robust construction, it meets the demands of modern electrical systems, facilitating easy assembly and enhanced productivity in panel building.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Nominal Cross Section
- 2.5 mm²
- Terminal Block Type
- Passthrough
- Width
- 5.2 mm (0.20 in)
- Wire Stripping Length
- 10 mm (0.39 in)
- Connections - Terminals
- 1 x push-in upstream, 2 x push-in downstream
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093/VDE 0303-T30
- Flame Retardance
- V0 0.8 mm UL 94
- Dielectric Strength
- 1000 V IEC 60243-1
- Toxic Heavy Metal Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts
- Color
- Orange
Rated Current24 A EN/IEC 60947-7-1, 20 A CSA, 20 A cURus
Number of Terminals3
Length60.5 mm (2.38 in)
Height36.5 mm (1.44 in)
Mounting ModeClip-on
Number of Measurement Inputs2
Dielectric Loss0.01 at 1 MHz IEC 60250/VDE 0303-T4
Resistivity10000 MΩ·m IEC 60093/VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093/VDE 0303-T30
Ambient Air Temperature for Operation-40 to 130 °C (-40 to 266 °F) IEC 60216-1/VDE 0304-T21
ComplianceIECEx, ATEX, EAC, VDE, CSA, GL, cURus, LR, REACh, RoHS, China RoHS
Reach Free Of SVHCYes
Country of OriginGermany
