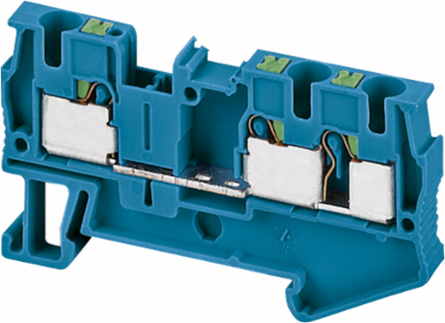

Schneider Electric NSYTRP43BL Linergy TR Terminal Block 4mm², Blue, Set of 50, 3 Points
- MPN: NSYTRP43BL
- PPN: SCH-NSYTRP43BL
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This set of 50 Schneider Electric NSYTRP43BL Linergy TR Terminal Blocks is designed for efficient and reliable electrical connections. Each terminal block accommodates 4mm² conductors and features three connection points, which enhances versatility in various automation and control applications. The distinct blue color provides clear identification in complex wiring systems, ensuring organized installations. With quality engineering from Schneider Electric, these terminal blocks are an excellent choice for professionals seeking dependable and effective solutions for their terminal block needs.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Nominal Cross Section
- 4 mmb2
- Number of Connection Points
- 3
- Length
- 66.5 mm (2.62 in)
- Height
- 36.5 mm (1.44 in)
- Wire Stripping Length
- 12 mm (0.47 in)
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, VDE 0303-T4
- Dielectric Strength
- 1000 V IEC 60243-1
- Product Certifications
- cURus, ATEX, CSA, EAC, IECEx, LR, GL
- REACH Compliance
- Yes (Free of Substances of Very High Concern above threshold)
- Color
- Blue
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A cURus
Cable Cross Section Range0.2-6 mmb2 solid with cable end, 0.2-4 mmb2 flexible without cable end, flexible with cable end, solid without cable end
Ambient Operating Temperature-40 to 130 b0C (-40 to 266 b0F) IEC 60216-1, VDE 0304-T21
Width6.2 mm (0.24 in)
Mounting ModeClip-on
Connection Terminals1 push-in upstream, 2 push-in downstream
Surface Resistance1000 Gb5 IEC 60093, VDE 0303-T30
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Resistivity10000 Mb5.m IEC 60093, VDE 0303-T30
RoHS ComplianceYes (Pro-active compliance, product out of EU RoHS scope)
Country of OriginChina
