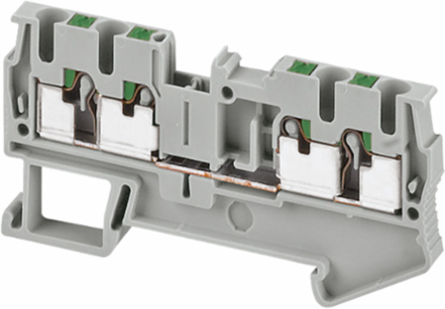

Schneider Electric NSYTRP24 Linergy TR Terminal Block 4 Points 2.5 mm² Grey Set of 50
- MPN: NSYTRP24
- PPN: SCH-NSYTRP24
CAD
$5.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Offering reliable connection solutions, the Schneider Electric NSYTRP24 Linergy TR Terminal Block features four points for secure connectivity, making it an essential component for any automation and control project. Each terminal block can accommodate wires up to 2.5 mm², ensuring flexibility and versatility in various applications. Supplied in a convenient set of 50, these grey terminal blocks are designed to streamline your wiring processes while maintaining safety and efficiency. Ideal for both professional installers and DIY enthusiasts, this product enhances organizational and operational capabilities in electrical installations.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Length
- 72 mm (2.83 in)
- Width
- 5.2 mm (0.20 in)
- Terminal Block Type
- Passthrough
- Connection Position
- Top
- Nominal Cross Section
- 2.5 mm²
- Wire Stripping Length
- 10 mm (0.39 in)
- Flame Retardance
- V0 0.8 mm UL 94
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250, VDE 0303-T4
- Surface Resistance
- 1000 GΩ IEC 60093, VDE 0303-T30
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
- Compliance
- GL, ATEX, cURus, LR, IECEx, EAC, VDE, CSA
- Warranty
- 18 months
- Color
- Gray
Rated Current24 A EN/IEC 60947-7-1, 20 A CSA, 20 A cURus
Height36.5 mm (1.44 in)
Number Of Terminals4
Mounting ModeClip-on
Connections - Terminals2 x push-in downstream, 2 x push-in upstream
Cable Cross Section0.14-2.5 mm² flexible without cable end, 0.14-4 mm² solid with cable end, 0.2-2.5 mm² solid without cable end, 0.8-2.5 mm² flexible with cable end
MaterialPolyamide 6/6 insulating case; Copper alloy connector and screw; Copper alloy commoning link; Chromium-nickel steel spring
Dielectric Constant3.7 at 1 MHz
Dielectric Strength1000 V IEC 60243-1
Resistivity10000 MΩ.m IEC 60093, VDE 0303-T30
Ambient Air Temperature for Operation-40 to 130 °C (-40 to 266 °F) IEC 60216-1, VDE 0304-T21
RoHS Exemption InformationYes
Net Weight10.6 g
Country of OriginChina
