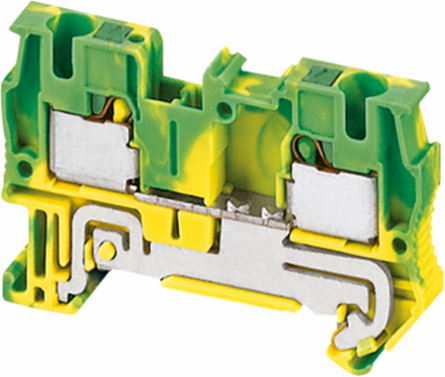

Schneider Electric NSYTRP42PE Linergy TR Terminal Block, 2 Points, 4 mm², Green-Yellow, Set of 50
- MPN: NSYTRP42PE
- PPN: SCH-NSYTRP42PE
CAD
$12.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Linergy TR Terminal Block is designed to provide reliable connectivity for various automation and control applications. This set of 50 terminal blocks features a dual-point connection, accommodating wires up to 4 mm² for efficient electrical distribution. The distinctive green-yellow color coding enhances visibility and compliance with safety standards, making it a practical choice for engineers and technicians seeking high-quality terminal solutions for their projects. With its robust design and straightforward installation, these terminal blocks ensure dependable performance in any industrial setting.
Documentation & Downloads
Specifications
Additional
- Number of Terminals
- 2
- Terminal Block Type
- protective earth
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 / VDE 0303-T30
- Dielectric Strength
- 1000 V IEC 60243-1
- Ambient Air Temperature for Operation
- -40 to 130 °C IEC 60216-1 / VDE 0304-T21
- Length
- 56 mm (2.20 in)
- Height
- 36.5 mm (1.44 in)
- Connections - Terminals
- 1 x push-in upstream, 1 x push-in downstream
- Net Weight
- 12.5 g (0.44 oz)
- Flame Retardance
- V0 0.8 mm UL 94
- Halogen Content Performance
- Halogen free plastic parts
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- Colour
- green-yellow
- Product Name
- Linergy TR
Nominal Cross Section4 mm²
Number of Measurement Input2
Resistivity10000 MΩ·m IEC 60093 / VDE 0303-T30
Creep Resistance500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
Dielectric Loss0.01 at 1 MHz IEC 60250 / VDE 0303-T4
Mounting Modeclip-on
Width6.2 mm (0.24 in)
Connection Positiontop
Wire Stripping Length12 mm (0.47 in)
Materialpolyamide 6/6 insulating case
ComplianceIEC-Ex, CSA, EAC, ATEX, cURus, GL, LR
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
Mercury FreeYes
RangeLinergy
