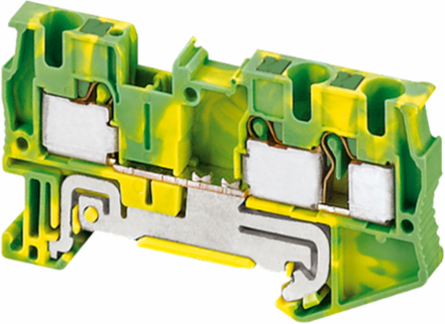

Schneider Electric NSYTRP43PE Terminal block, Linergy TR, push-in type, 3 points, 4mm², protective earth, green-yellow, set of 50
Schneider Electric NSYTRP43PE Terminal block, Linergy TR, push-in type, 3 points, 4mm², protective earth, green-yellow, set of 50
- MPN: NSYTRP43PE
- PPN: SCH-NSYTRP43PE
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$13.98/ EA
Description
Terminal block, Linergy TR, push-in type, 3 points, 4mm², protective earth, green-yellow, set of 50
Specifications
Environment
- Product Certifications
- cURus || IEC-Ex || GL || ATEX || CSA || LR || EAC
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309020EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 3
- Cable Cross Section
- 0.08-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end
- Number Of Measurement Input
- 2
- Net Weight
- 14.4 g
- Wire Stripping Length
- 12 mm
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Height36.5 mm
Connections - Terminals1 x push-in upstream || 2 x push-in downstream
Connection Positiontop
Tool Typedisconnection flat screwdriver || connection without tool
Flame RetardanceV0 0.8 mm UL 94
Resistivity10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Materialpolyamide 6/6: insulating case
Width6.2 mm
Product CompatibilitySpacial enclosures
Specifications
- Terminal Block Type
- protective earth
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Short Name
- TRP
Product Or Component Typeterminal block
Length66.5 mm
Mounting Modeclip-on
Nominal Cross Section4 mm²
Colourgreen-yellow
