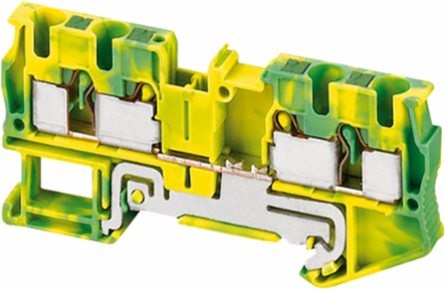

Schneider Electric NSYTRP44PE Linergy TR Terminal Block, 4 Points, 4 mm², Green-Yellow, Set of 50
- MPN: NSYTRP44PE
- PPN: SCH-NSYTRP44PE
CAD
$17.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric presents the NSYTRP44PE Linergy TR Terminal Block, a highly efficient solution for reliable electrical connections within your automation and control projects. Designed with a focus on versatility, this terminal block accommodates four points and is rated for wire sizes up to 4 mm², making it suitable for a wide range of applications. Featured in an eye-catching green-yellow color, these blocks not only ensure easy identification but also enhance safety and organization in wiring systems. Each set comes with 50 terminal blocks, providing ample supply for extensive installations, ensuring consistent performance and reliability in your electrical setups.
Documentation & Downloads
Specifications
Additional
- Dielectric Strength
- 1000 V IEC 60243-1
- Cable Cross Section
- 0.08-6 mm² solid, 0.2-4 mm² flexible with cable end, 0.08-4 mm² flexible without cable end
- Number of Connections
- 4 (2 x push-in downstream, 2 x push-in upstream)
- Terminal Block Type
- Protective earth
- Mounting Mode
- Clip-on
- Length
- 77 mm (3.03 in)
- Height
- 36.5 mm (1.44 in)
- Material
- Polyamide 6/6 insulating case
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Resistivity
- 10000 MΩ·m IEC 60093
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- RoHS Exemption Information
- Yes
- China RoHS Regulation
- Pro-active declaration (out of China RoHS scope)
- Toxic Heavy Metal Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts
- Country of Origin
- China
- Product Compatibility
- Spacial enclosures
- Product Or Component Type
- Terminal block
- Environmental Disclosure
- ENVPEP2309020EN
Ambient Air Temperature for Operation-40 to 130 °C IEC 60216-1
Wire Stripping Length12 mm
Number of Measurement Inputs2
Terminal Block Level1
Connection PositionTop
Width6.2 mm (0.24 in)
Net Weight17.2 g (0.61 oz)
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 GΩ IEC 60093
Product CertificationsCSA, LR, EAC, ATEX, IECEx, GL, cURus
EU RoHS DirectivePro-active compliance (out of EU RoHS scope)
REACH Free of SVHCYes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Product NameLinergy TR
Device Short NameTRP
