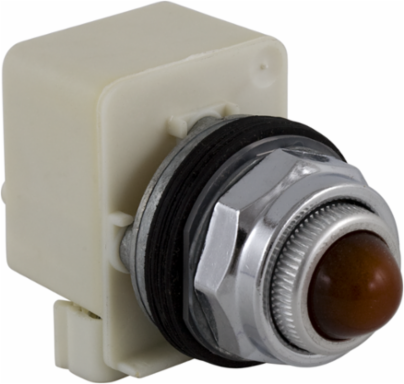

Square D 9001KT38LYA9 Push-to-Test Pilot Light, 30 mm, Amber, Yellow LED, 120V
- MPN: 9001KT38LYA9
- UPC: 785901175766
- PPN: SCH-9001KT38LYA9
CAD
$301.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This push-to-test pilot light from Schneider Electric is designed for optimal visibility and reliability in automation and control applications. Featuring a vibrant amber yellow LED, it not only provides clear indication but also ensures a long lifespan and low energy consumption at 120V. The 30 mm size is compact yet easy to integrate into various panel setups, making it suitable for a range of pilot device installations. With its user-friendly push-to-test functionality, this light allows for quick status checks, enhancing operational efficiency and safety in your workspace.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V
- Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Conventional Free Air Thermal Current
- 10 A
- Operating Mode
- push-to-test
- Mounting Diameter
- 30 mm
- CAD Overall Height
- 70 mm
- Net Weight
- 0.21 kg
- Lens Material
- polycarbonate
- Cap/Operator or Lens Colour
- amber
- Shape of Screw Head
- cross slotted
- Tightening Torque
- 0.8 N·m IEC 60947-1
- Overvoltage Category
- class II IEC 61140
- NEMA Degree of Protection
- NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Shock Resistance
- 50 gn IEC 60068-2-27
- Standards
- UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1
- Ambient Air Temperature for Operation
- -25 to 70 °C
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
Rated Insulation Voltage250 V IEC 60947-1
Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
Light Sourceyellow LED
Size30 mm
CAD Overall Width54 mm
CAD Overall Depth42 mm
Bezel Materialmetal
Lens Typedomed plastic
Shape of Signaling Unit Headround
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Operating Positionany position
IP Degree of ProtectionIP66 IEC 60529
Vibration Resistance7 gn (2-500 Hz) IEC 60068-2-6
Product CertificationsUL 508, NEMA
Protective TreatmentTC
Ambient Air Temperature for Storage-40 to 70 °C
RoHS Exemption InformationYes
Country of OriginMX
