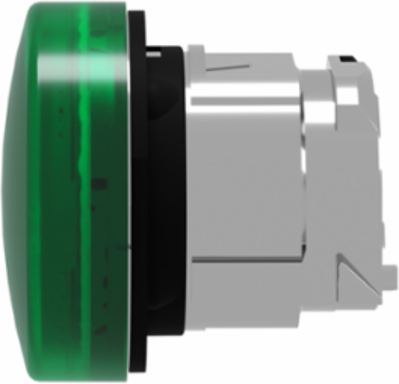

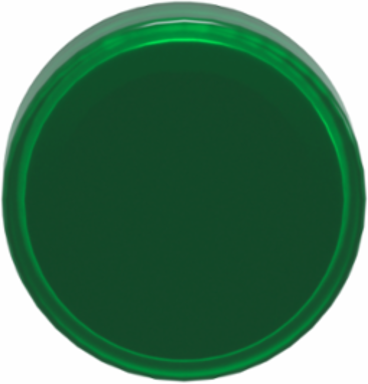

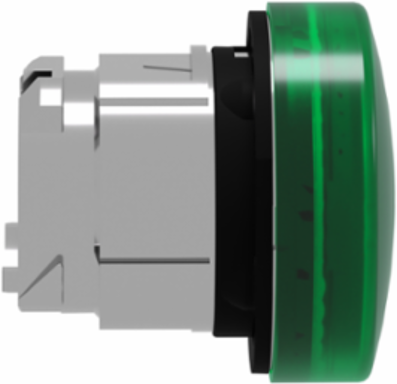

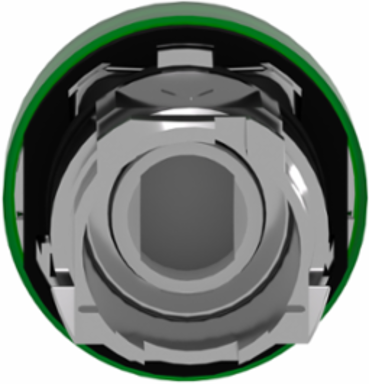

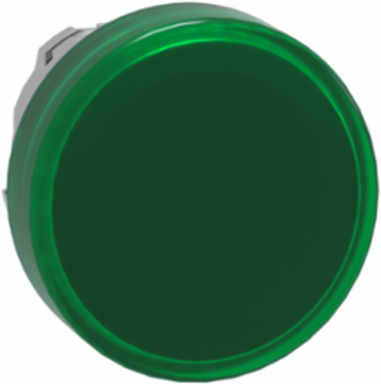

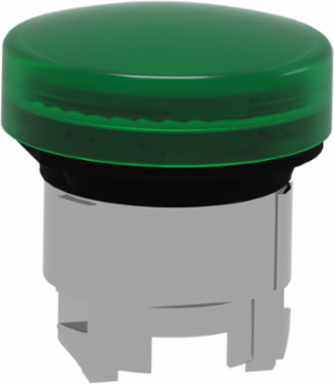

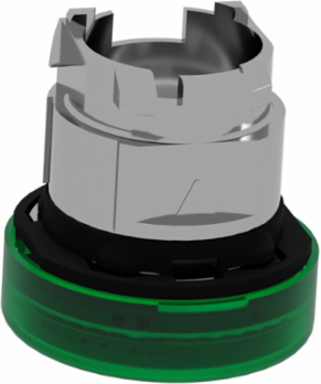

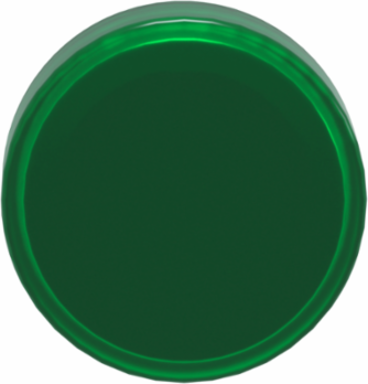

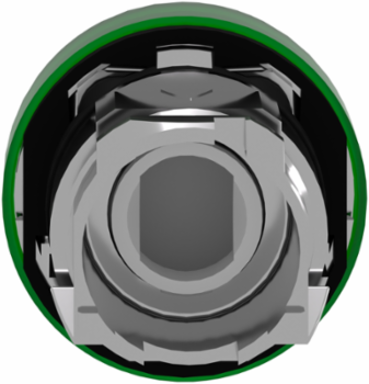

Schneider Electric ZB4BV033 Harmony XB4 Green Pilot Light Head, 22mm, IP66, Metal Bezel
- MPN: ZB4BV033
- PPN: SCH-ZB4BV033
CAD
$9.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, plain lens head for pilot light with integral LED is green. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- The ZB4BV043 is a 22mm "Pilot Light" operator head from the Schneider Electric Harmony XB4 metal range. It is designed to provide a bright, green visual indication of a machine's status—such as "Ready," "Running," or "Normal Operation"—within industrial control panels and automation systems.
- Featuring a Green Plain Lens, this operator is designed to diffuse light evenly across its surface. When paired with a compatible LED or incandescent bulb, it provides high-visibility signaling from a wide viewing angle, ensuring operators can identify critical machine states even in high-ambient light environments.
- Built with a robust chromium-plated metal bezel, the ZB4BV043 is engineered for maximum mechanical durability. It is rated IP66, IP67, IP69, and IP69K, making it completely dust-tight and resistant to high-pressure, high-temperature washdowns. This makes it ideal for food processing, automotive, and heavy-duty manufacturing.
- This part number is the operator head only. To create a functional pilot light, you must pair it with a metal mounting collar (ZB4BZ009) and a light block (such as the ZBVG3 for 120V LED). Its "snap-fit" design allows for the light block to be easily swapped or upgraded without replacing the entire head.
- The Schneider Electric ZB4BV043 is UL Listed, CSA Certified, and CE marked. It is designed to fit a standard 22.5mm (7/8") hole, ensuring compatibility with most industrial control stations and enclosures worldwide while maintaining the NEMA 4X integrity of your panel.
Documentation & Downloads
Specifications
Additional
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- IP Degree of Protection
- IP66, IP67, IP69, IP69K
- Overvoltage Category
- Class I IEC 60536
- Ambient Air Temperature For Storage
- -40 to 70 °C

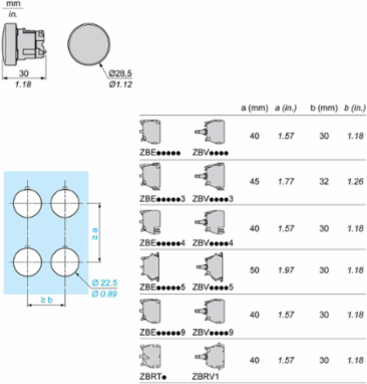

- Cad Overall Depth
- 30 mm
- Cad Overall Height
- 29 mm
- Material
- Chromium plated metal
- Lens Color
- Green
- Shape
- Round
- Electrical Composition Code
- P1 front mounting integral LED; P2 front mounting integral LED and transformer
- Standards
- JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- Resistance To High Pressure Washer
- 7,000,000 Pa at 55 °C 0.1 m
Shock Resistance50 gn 11 ms, 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
NEMA Degree of ProtectionNEMA 13, NEMA 4X
Ambient Air Temperature For Operation-40 to 70 °C
Mounting Diameter22 mm (0.87 in)
Cad Overall Width29 mm
Weight0.026 kg (0.06 lb)
Bezel FinishChromium plated
Lens TypePlain
IK Degree of ProtectionIK06 IEC 50102
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above threshold
Toxic Heavy Metal FreeYes
China RoHS RegulationX
Country of OriginFrance
