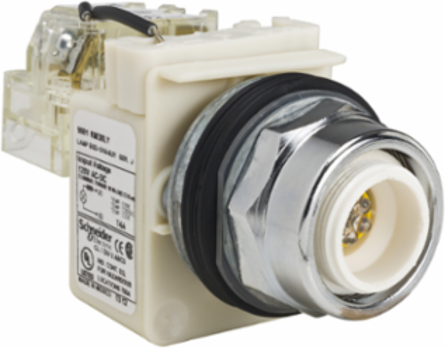

Square D 9001KT38LY Harmony 9001K Push-to-Test Pilot Light, 30 mm, Yellow LED, 120V
Square D 9001KT38LY Harmony 9001K Push-to-Test Pilot Light, 30 mm, Yellow LED, 120V
- MPN: 9001KT38LY
- UPC: 785901716334
- PPN: SCH-9001KT38LY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$287.17/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pilot light indicates a closed or active circuit with a light." "It is equipped with yellow LED light. The light block is rated to 120V AC supply voltage." "It has a round shaped screw head." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This K Plus options type pilot light is fitted with chromium plated metal bezel." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CE, CSA LR25490 class 3211 03 and UL listed file E42259 CCN NKCR." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Light Source
- yellow LED
- Light Source Colour
- yellow
- Light Block Supply
- direct 120 V
- Operating Mode
- push-to-test
- Shape Of Screw Head
- round
- Bulb Base
- BA 9s
Contacts Type And Composition1 C/O
Bezel Materialmetal
Light SourceLED
Mounting Diameter30 mm
Cap/Operator Or Lens Colourwithout cap
Size30 mm
Specifications
- Range Of Product
- Harmony 9001K
- Device Short Name
- K
Product Or Component Typehead for push-to-test pilot light
Environment
- Product Certifications
- CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
