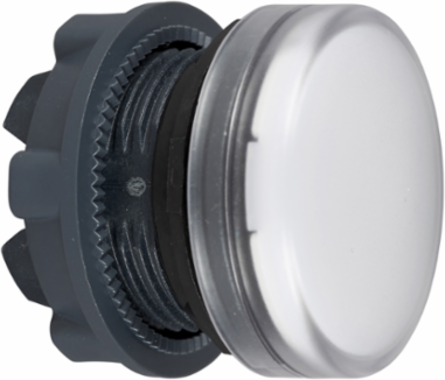

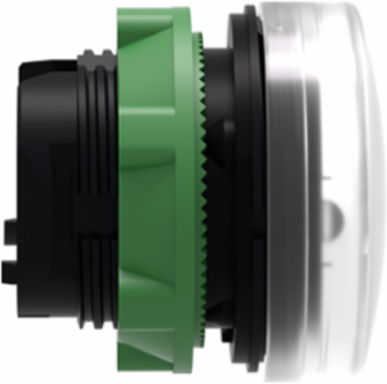

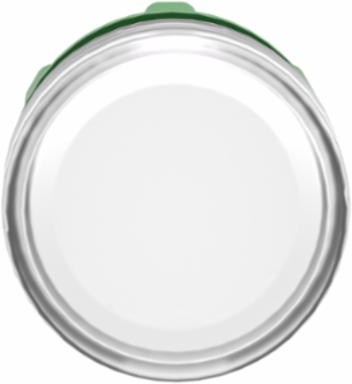

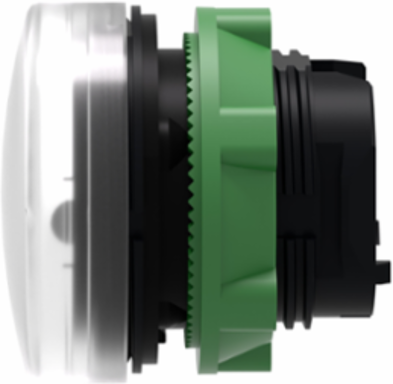

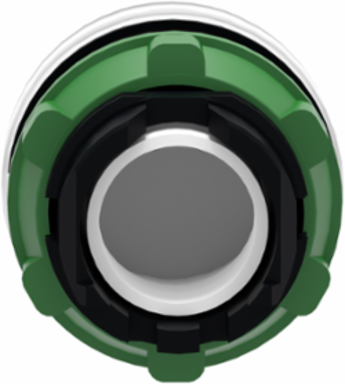

Schneider Electric ZB5AV01 Harmony XB5 22mm Pilot Light Head, White, IP66, BA9s Base
Schneider Electric ZB5AV01 Harmony XB5 22mm Pilot Light Head, White, IP66, BA9s Base
- MPN: ZB5AV01
- PPN: SCH-ZB5AV01
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$8.14/ EA
Description
This Harmony XB5 plain lens white head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Ik Degree Of Protection
- IK05 conforming to IEC 50102
- Standards
- IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
- Cad Overall Height
- 29 mm
- Station Name
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth
- 31 mm
Net Weight0.018 kg
Device Presentationbasic element
Cad Overall Width29 mm
Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
Range Of ProductHarmony XB5
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colourwhite
Sale Per Indivisible Quantity1
Product CompatibilityBA 9s
