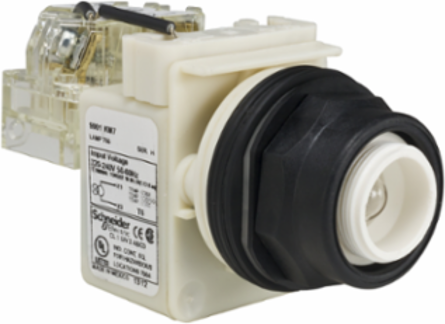

Schneider Electric 9001SKT7 Push-to-Test Pilot Light Head 30mm, Plastic, 220-240V, IP66
- MPN: 9001SKT7
- UPC: 785901837268
- PPN: SCH-9001SKT7
CAD
$237.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This push-to-test pilot light head from Schneider Electric is designed for robust performance in automation and control applications, featuring a 30mm diameter that fits standard installations. Constructed from durable plastic, it operates efficiently at voltages ranging from 220 to 240V, making it suitable for a variety of industrial environments. With an IP66 rating, this pilot light head offers excellent protection against dust and water, ensuring reliability in demanding conditions. Its intuitive push-to-test feature allows for easy functionality checks, making it a valuable addition to your control systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 220-240 V AC 50/60 Hz
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Mounting Diameter
- 30 mm (1.18 in)
- Cad Overall Width
- 54 mm
- Net Weight
- 0.181 kg
- Bezel Material
- Plastic
- Cap/Operator or Lens Colour
- Without cap
- Bulb Base
- BA 9s
- Protective Treatment
- TC
- IP Degree of Protection
- IP66 IEC 60529
- Shock Resistance
- 50 gn IEC 60068-2-27
- Supply Frequency
- 50-60 Hz
- Product Or Component Type
- Head for push-to-test pilot light
- Operating Mode
- Push-to-test
- Operating Position
- Any position
Conventional Free Air Thermal Current10 A
Rated Insulation Voltage250 V EN/IEC 60947-1
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Size30 mm
Cad Overall Height70 mm
Cad Overall Depth42 mm
MaterialPlastic
Shape of Signaling Unit HeadRound
Light SourceIncandescent bulb
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Vibration Resistance7 gn (2-500 Hz) IEC 60068-2-6
Standards/CertificationsUL 508, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C 852, JIS C8201-1
Tightening Torque0.8 N.m (7.08 lbf.in) EN/IEC 60947-1
Range of ProductHarmony 9001SK
Connections - TerminalsScrew clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
