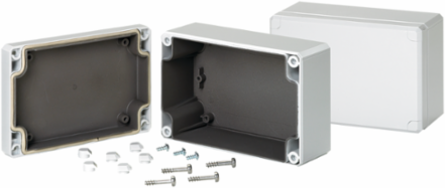

nVent Hoffman Q1286PCEMC QLine D EMC Enclosure Type 4X, 120x80x55mm, Light Gray, Polycarbonate
- MPN: Q1286PCEMC
- UPC: 783510456795
- PPN: HOF-Q1286PCEMC
- UNSPSC: 39121324
CAD
$107.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine D polycarbonate EMC Enclosures provide EMC protection in corrosive environments. This QLine D EMC Enclosure Type 4X, Q1286PCEMC item measures 120x80x55mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 80
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Interior Finish
- EMC Conductive Coating
- Mounting (G x H)
- 108 x 50
- Weight
- 0.3
- Material
- Polycarbonate
- Cubic Capacity
- 25 cubic in
Height (H)120
Depth (D)55
Product FamilyQLine
ColorLight Gray
Thickness (T)3
Internal Dimensions (A x B x C)4.47 x 2.89 x 1.93
IP RatingIP66
Sub BrandQLine
Size120 x 80 mm
NEMA Rating4X Watertight, corrosion-resistant
