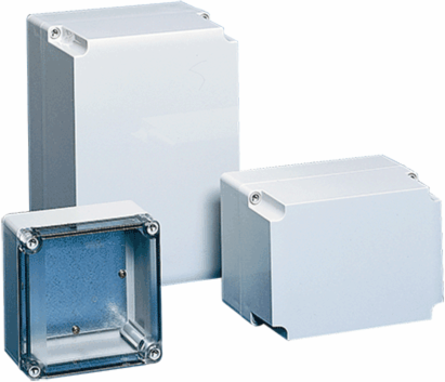

nVent Hoffman Q131310ABE Qline™ E, Type 4X - Q131310ABE
- MPN: Q131310ABE
- UPC: 783510140793
- PPN: HOF-Q131310ABE
CAD
$60.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Qline E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. <br/>The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Cover includes a molded-in wire lead hole
- Mounting tracks along body side walls for PC card installation
- Molded internal pads for mounting optional panels, rails and other components
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- Q41
- Model Code
- 0.78
- Catalog Number
- Q131310ABE
- B in.
- 4.67
- S in.
- 3.54
- External Dimensions L x W in.
- 4.92 x 4.92
- Panel Size D x E in.
- 3.86 x 3.86
- F in.
- 3.39
- P in.
- 3.54
- Standards
- UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP67 || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || IEC 60529, IP67
Material14079
Ship Wt. Std. Pkg. (lbs)False
A in.4.67
C in.3.64
Cover StyleOpaque
PanelQ1313PE
Mounting G x H in.4.33 x 4.33
K in.1.97
Q in.2.95
