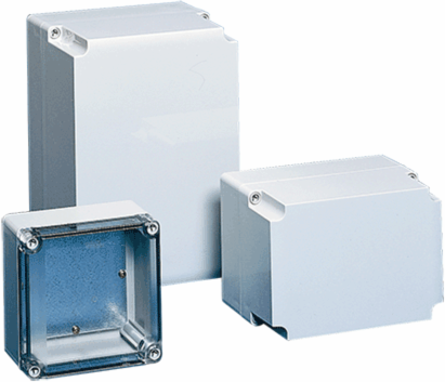

nVent Hoffman Q181810PCE Qline E, Type 4X - Q181810PCE
- MPN: Q181810PCE
- UPC: 783510142391
- PPN: HOF-Q181810PCE
CAD
$118.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Cover includes a molded-in wire lead hole
- Mounting tracks along body side walls for PC card installation
- Molded internal pads for mounting optional panels, rails and other components
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
Documentation & Downloads
Specifications
Additional
| Standards | UL 508A Listed; cUL CSA C22.2 No 94; IEC 60529 IP67; NEMA Type 4, 4X, 6, 12, 13 |
|---|---|
| Cover Style | Opaque |
| External Dimensions (L x W) | 175 x 175 mm (6.89 x 6.89 in) |
| Mounting Dimensions (G x H) | 160 x 160 mm (6.30 x 6.30 in) |
| Seal Type | Seamless foam-in-place gasket |
| Mounting | Molded internal pads, mounting tracks along body side walls |
| Bulletin Number | Q41 |
| Type Rating | 4X |
|---|---|
| Internal Dimensions (A x B x C) | 169 x 169 x 92 mm (6.63 x 6.63 x 3.64 in) |
| Panel Size (D x E) | 148 x 148 mm (5.83 x 5.83 in) |
| Material | Polycarbonate |
| Cover Screws | Cross-point flush polyamide |
| Finish Color | RAL 7035 light gray inside and out |
| Catalog Number | Q181810PCE |
