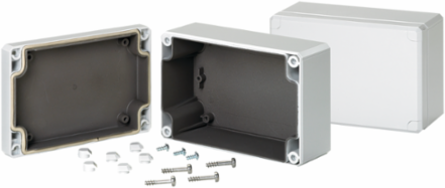

nVent Hoffman Q24169PCEMC QLine D EMC Enclosure Type 4X, 240x160x90mm, Light Gray, Polycarbonate
- MPN: Q24169PCEMC
- UPC: 783510465896
- PPN: HOF-Q24169PCEMC
- UNSPSC: 39121324
CAD
$297.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine D polycarbonate EMC Enclosures provide EMC protection in corrosive environments. This QLine D EMC Enclosure Type 4X, Q24169PCEMC item measures 240x160x90mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 160
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Interior Finish
- EMC Conductive Coating
- Mounting (G x H)
- 228 x 130
- Weight
- 1.3
- Material
- Polycarbonate
- Cubic Capacity
- 182 cubic in
Height (H)240
Depth (D)90
Product FamilyQLine
ColorLight Gray
Thickness (T)3
Internal Dimensions (A x B x C)9.17 x 6.02 x 3.29
IP RatingIP66
Sub BrandQLine
Size240 x 160 mm
NEMA Rating4X Watertight, corrosion-resistant
