nVent Hoffman Q6PBPCD QLine D Pushbutton Enclosure Type 4X, 6PBx30.5mm, Light Gray, Polycarbonate

MPN: Q6PBPCD
UPC: 783510151690
PPN: HOF-Q6PBPCD
UNSPSC: 39121309

$156.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

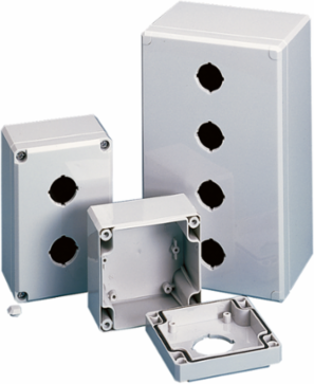

QLine D Pushbutton Enclosures are used for insulating and housing 30.5-mm or 22.5-mm pushbuttons. This QLine D Pushbutton Enclosure Type 4X, Q6PBPCD item measures 6PBx30.5mm with a material of Polycarbonate colored Lt Gray.

Features

High-impact polycarbonate material is used for both body and cover
Polycarbonate material is easily punched, drilled, filed or sawed
Straight side walls permit ganging of multiple enclosures
Cross-point captivated cover screws are stainless steel
Mounting holes molded directly adjacent to cover screws
Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
Molded internal pads for mounting optional panels, rails or other components
Seamless foam-in-place gasket assures watertight and dust-tight seal
Screws provided for mounting optional panel
Optional panels are unpainted plated steel
Mounting hardware furnished
Material is halogen free

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	160
Protection Rating	NEMA Type 12
Finish	Smooth Gloss
Color Code	RAL 7035
Mounting (G x H)	228 x 130
IP Rating	IP67
Sub Brand	QLine
Size	240 x 160 mm

Height (H)	240
Depth (D)	84
Product Family	QLine PushButton
Color	Light Gray
Thickness (T)	3
NEMA Rating	4X Watertight, corrosion-resistant
Weight	1.3
Material	Polycarbonate
