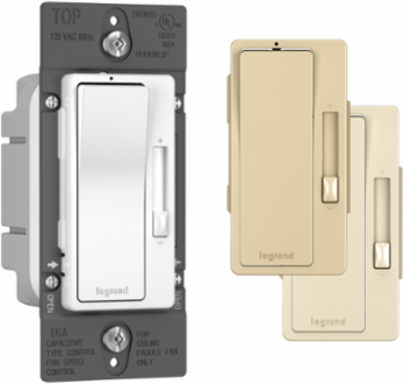

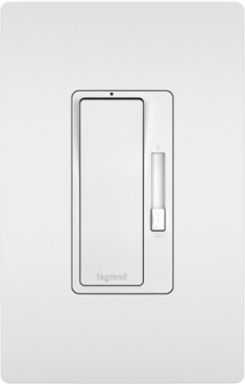

Radiant RHDH163PTC radiant® Single-Pole/3-Way Fan Speed Control
- MPN: RHDH163PTC
- UPC: 785007053418
- PPN: P-S-RHDH163PTC
CAD
$57.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Upgrade your fan control with the sweet sound of silence. Specially designed to virtually eliminate the fan motor ""hum."" This device provides quieter fan speed control while featuring the sleek, clean lines of radiant® for a sophisticated touch. This fan control switch handles a max load of 1.6A.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Designed to virtually eliminate the motor's hum for quieter use.
- Installs easily in place of a standard light or fan control switch. Rated for a max load of 1.6A.
- Offers installation flexibility, working in both single-pole and 3-way applications.
- Returns the fan to its previous level after a power failure.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- More color options available to fit any style.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Height
- 4.25 in
- Width
- 1.75 in
- Standard
- cULus
- Standard
- UL Listed
- Switch Type
- Slider
- Indoor/Outdoor
- Indoor
- Features
- Locator Light
- Load Type
- AC Fan Motor
- Number of Switches
- 1.0
- Wire Size
- #14 - #10 AWG
- Requires Neutral Wire
- No
- Number of Poles
- Single Pole
- Finish
- Matte
- Product Line
- Pass & Seymour
- Application Sector
- Residential
- Load Rating
- 120V 1.6A (FAN MOTOR)
- Dimming Compatibility
- Fan Speed Only
- Application Sector
- Multi-Dwelling Unit
- Jigsaw Channel Availability
- Distribution
Special FeaturesThis fan control offers a specially designed capacitive circuitry de-hummer feature that virtually eliminates fan motor ““hum" for quiet fan speed control.
PresetYes
Country of OriginChina
Voltage120 VAC
Switch TypePaddle
StandardCSA Listed
Number of Poles3-Way
Frequency Rating60 Hz
Mounting TypeWall Box
TypeFan Speed Control
Compatible Add-OnsRHKIT
FeaturesColor Change Kit
ColorIvory,Light Almond,White
MaterialSteel,Thermoplastic
Features3-Speed Fan Control
FeaturesDe-Hummer Fan Control
Wire Connection TypeFlying Leads
Environmental ConditionsIndoor Only
Warranty TypeLimited Lifetime Warranty
