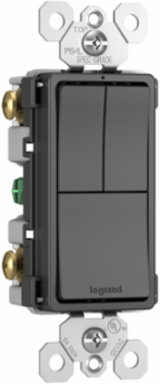

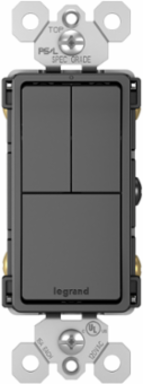

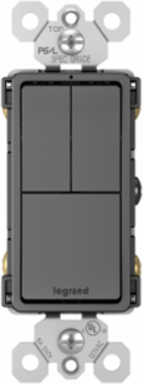

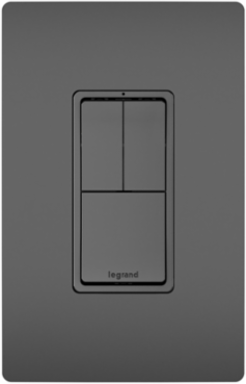

Radiant RCD113BK radiant® Two Single-Pole Switches and Single Pole/3-Way Switch, Black
- MPN: RCD113BK
- UPC: 785007054736
- PPN: P-S-RCD113BK
CAD
$32.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

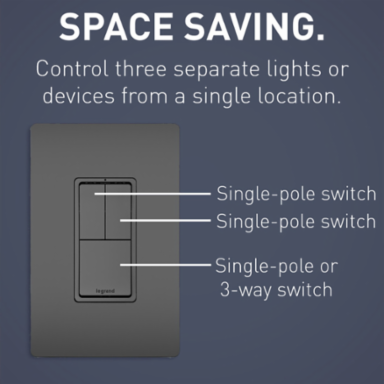

More control, less space. This combination switch provides control of multiple lights or devices from a single location, while featuring an oversized primary switch for easy use. Designed to emulate the sleek lines of the collection's paddle switches, it delivers flexible, space-saving control with the sophisticated look of radiant.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Offers installation flexibility with space-saving style, as part of the extensive offering from the radiant® Collection.
- Features durable, high-impact resistant thermoplastic construction.
- Designed to install easily with a narrower back body and captivated mounting screws.

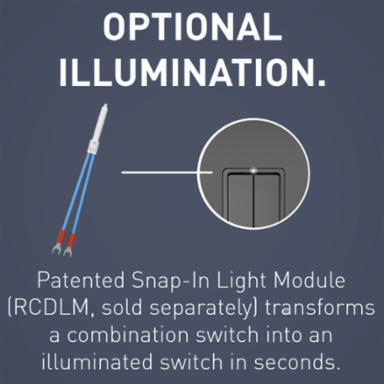

- Patented Snap-In Light Module (sold separately) transforms a combination switch into an illuminated switch in seconds.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.59 in |
|---|---|
| Height | 3.81 in |
| Width | 1.29 in |
| Material | Thermoplastic |
| Type | Switch |
| Load Type | LED |
| Amperage | 15.0 A |
| Voltage | 120 VAC |
| Load Type | Halogen |
| Switch Type | Paddle |
| Number of Gangs | 1.0 |
| Indoor/Outdoor | Indoor |
| Number of Poles | 3-Way |
| Load Type | Incandescent |
| Number of Switches | 3.0 |
| Throw Type | Single Throw |
| Features | Decorator Style |
| Requires Neutral Wire | Yes |
| Application Sector | Residential |
| Wire Connection Type | Push Wire |
| Connection Location | Back and Side |
| Jigsaw Channel Availability | Retail |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Color | Black |
|---|---|
| Finish | Satin |
| Country of Origin | China |
| Product Line | Pass & Seymour |
| Load Type | CFL |
| Standard | cULus |
| Load Type | Xenon |
| Voltage | 125 VAC |
| Standard | UL Listed |
| Load Type | Universal |
| Features | Combination |
| Load Type | Fluorescent |
| Features | Locator Light |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Compatible Add-Ons | RCDLM |
| Operating Cycles | 50000.0 |
| Number of Poles | Single Pole |
| Load Rating | 15 A @ 120/125 VAC |
| Environmental Conditions | UL94 V2 |
| Special Features | The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. Unique "Up/Down" switches match the look and feel of radiant paddle switches. |
| Wire Connection Type | Wire Terminal |
| Jigsaw Channel Availability | Distribution |
