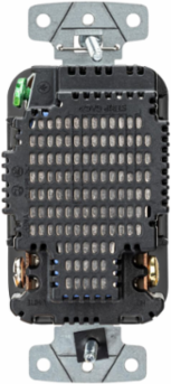

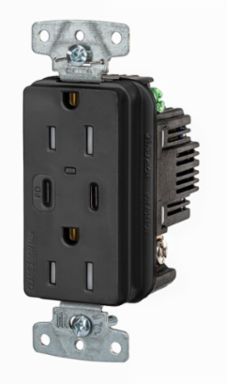

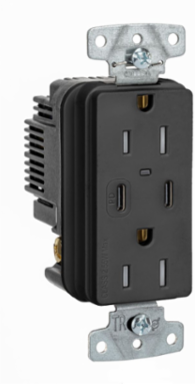

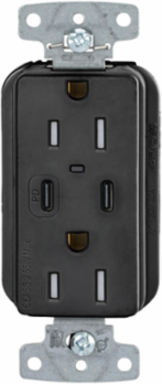

Hubbell Wiring Device-Kellems USB15CPDBK Tamper Resistant Receptacle 2-Pole 3-Wire NEMA 5-15R 15A 55W USB Ports
- MPN: USB15CPDBK
- UPC: 783585723167
- PPN: HBL-USB15CPDBK
- UNSPSC: 39121406
CAD
$90.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tamper Resistant Receptacle, 2-Pole 3-Wire Grounding, 1 Type "C" Power Delivery, 1 Type "C" Standard 5V
Features
- High Power 55 Watt USB Power Delivery 3.0 Standard, 5 Volt USB BC1.2 Output
- Two Type C USB Ports, One Supports Power Delivery
- Tamper Resistant Commercial Grade Duplex Compatible
- USB Ports Rated 10,000 Cycles
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.200 in
- Color
- Black
- Number of Poles
- 2-Pole
- Standard
- NEMA 5-15R, USB PD 3.0, USB BC1.2
- Voltage Rating
- 125 V
- General Literature Asset 2 Display Text
- FREQUENTLY ANSWERED QUESTIONSUSB-C Power Delivery Receptacles
- Number Of Poles
- 2-Pole
- Style
- Style Line Decorator
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- USB Charger
- BOX SIZE
- 4.300x11.000x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585723167
- Case Weight
- 22.550 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Industry Standard(s)NEMA 5-15R, USB PD 3.0, USB BC1.2
NEMA Rating5-15R
Number of Wires3-Wire
TypeTamper Resistant USB
General Literature Asset 1 Display TextUSB Power Delivery Receptacles
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA04
Harmonization Code8536698000
Sub Class CodeA04A062
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet Height51.000 in
Pallet Weight1393.000 lb.
NAICS Code335931A102
