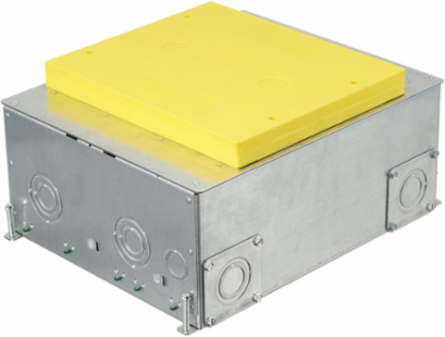

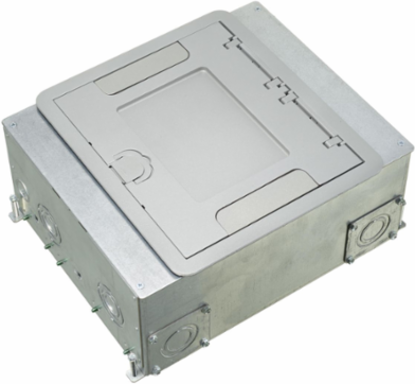

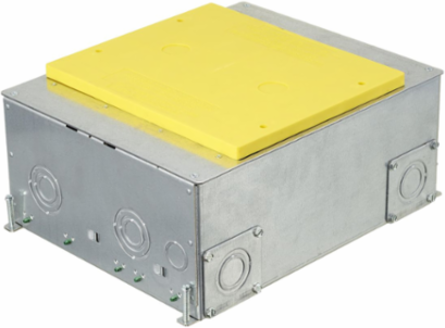

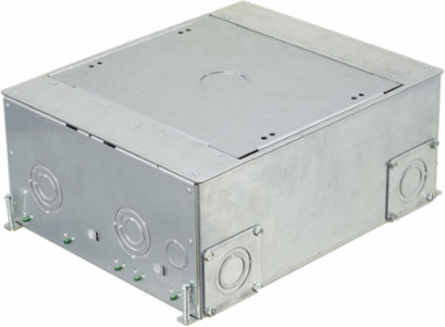

Hubbell Premise Wiring CFB10G55E Recessed 8/10-Gang Floorbox, 14.14 x 11.09 x 5.59 Inch, Galvanized Steel
- MPN: CFB10G55E
- UPC: 783585695112
- PPN: HBL-CFB10G55E
- UNSPSC: 39121307
CAD
$717.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 8/10-Gang CFB E-Series Box for Rectangular Covers, 5.59" Minimum Depth of Pour
Features
- Recessed 8/10-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 5.59" Minimum Depth of Pour
- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (2) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Mounting
- Field Installed
- Width
- 11.09 in
- Type
- Recessed
- Material
- 16 gauge galvanized steel
- Mounting Method
- Screw Mount Device Mounting Plates
- Wiring Chamber Volumes
- (2) Small 35 in3, (2) Med 69.5 in3, (2) Large 99 in3
- Top Mounting Plates Material
- 16 gauge galvanized steel
- 1/2" Prepour Cover Material
- Yellow Plastic
- Compliance
- cULus Listed, UL 514A Listed
- Application
- For Use in Concrete Floors
Length14.14 in
Height5.59 in
Number of Gang(s)8 or 10-Gang
Cable EntryThrough Cover
Wiring Chamber Depth3.75 in
Device Chamber Grounding6 in Long #12 AWG Solid Copper Wire
Flush Prepour Cover Material16 gauge galvanized steel
Trade Size Knock-OutsEnds: (2) 1 2", 3 4", (4) 1 2", 3 4", 1", 13 8", 11 2"
ColorMetallic
