Hubbell Premise Wiring CFB10G55CRE Recessed Concrete Floorbox, 8/10-Gang, 5.59 Inch Depth, Galvanized Steel
- MPN: CFB10G55CRE
- UPC: 783585695129
- PPN: HBL-CFB10G55CRE
- UNSPSC: 39121307
CAD
$771.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

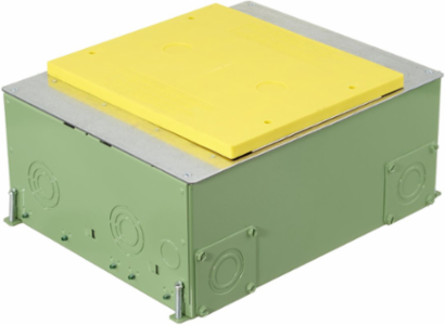

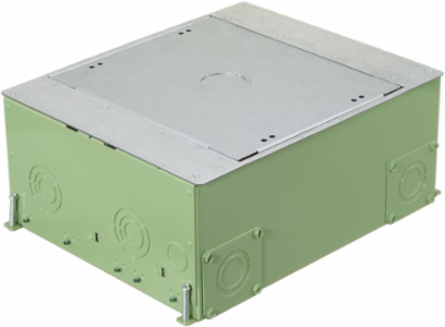

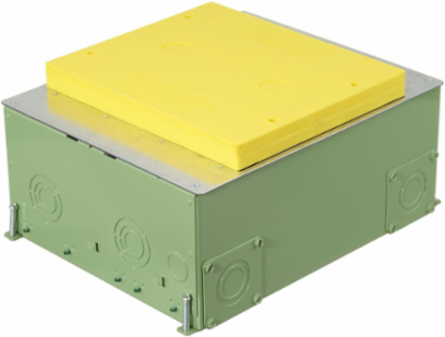

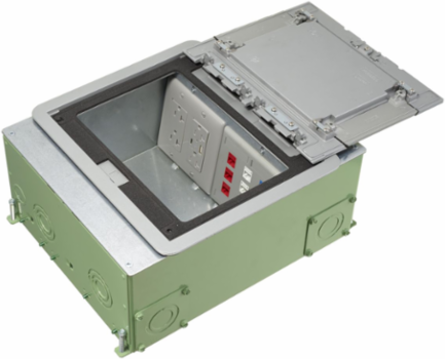

SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 8/10-Gang CFB E-Series Box for Rectangular Covers, 5.59" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Recessed 8/10-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 5.59" Minimum Depth of Pour
- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (2) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Application
- For Use in Concrete Floors
- Finish
- Green corrosion resistant epoxy paint
- Mounting Type
- Field Installed
- Length
- 14.14 in
- Height
- 5.59 in
- Number of Gang(s)
- 8 or 10-Gang
- Wiring Chamber Depth
- 3.75 in
- Device Chamber Grounding
- 6 in long #12 AWG Solid Copper Wire
- Compliance
- cULus Listed, UL 514A Listed
MaterialGalvanized Stamped Steel, 16 gauge galvanized steel
Mounting MethodScrew Mount Device Mounting Plates
Size14.14 in x 11.09 in x 5.59 in
Width11.09 in
ColorMetallic/Green Epoxy Paint
Trade Size Knock-Outs Ends(2) 1/2 in, 3/4 in, (4) 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Wiring Chamber Volumes(2) Small 35 in³, (2) Medium 69.5 in³, (2) Large 99 in³
Cable EntryThrough Cover
