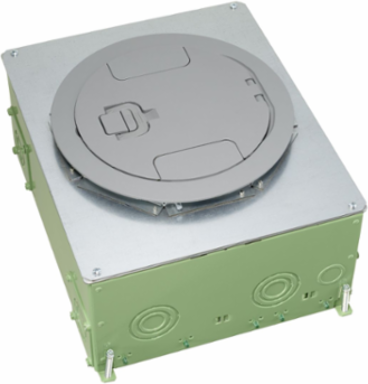

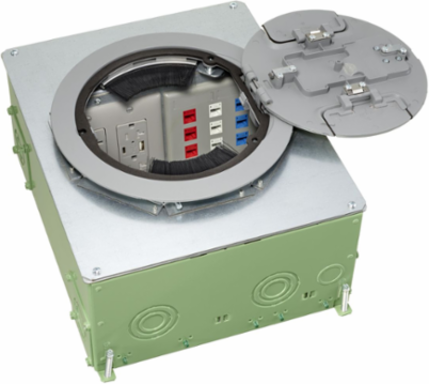

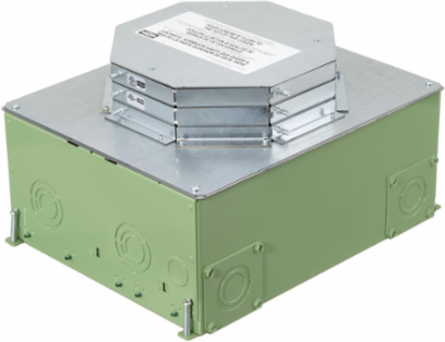

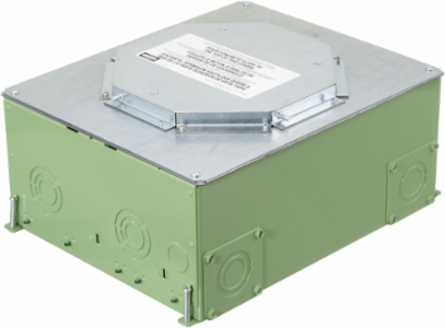

Hubbell Premise Wiring CFB10G55RCRE Recessed 8/10-Gang Floorbox, 14.14x11.09x6.31 Inch, Galvanized Steel
- MPN: CFB10G55RCRE
- UPC: 783585695143
- PPN: HBL-CFB10G55RCRE
- UNSPSC: 39121307
CAD
$880.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 8/10-Gang CFB E-Series Box for Round Covers, 6.31" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Recessed 8/10-Gang Round Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 6.31" Minimum Depth of Pour
- Box Includes Installation Cover
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (2) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Size
- 14.14 in x 11.09 in x 6.31 in
- Style
- 8 or 10-Gang
- Material
- 16 gauge galvanized stamped steel
- Color
- Metallic/Green Epoxy Paint
- Cover Style
- Round
- Wiring Chamber Depth
- 3.75 in
- Device Chamber Grounding
- 6 in Long #12 AWG Solid Copper Wire
- Standard
- cULus; UL514
- Cable Entry
- Through Cover
Mounting TypeField Installed, Screw Mount Device Mounting Plates
TypeRecessed
FinishGreen corrosion resistant epoxy paint
ApplicationFor Use in Concrete Floors
Trade Size Knock-Outs(2) ½", ¾", (4) ½", ¾", 1", 1¼", 1½"
Wiring Chamber Volumes(2) Small 35 in³, (2) Medium 69.5 in³, (2) Large 99 in³
MountingField Installed
Industry Standard(s)cULus; UL514
