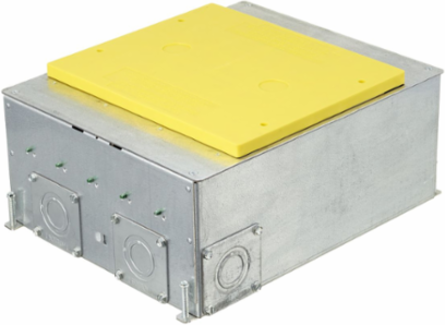

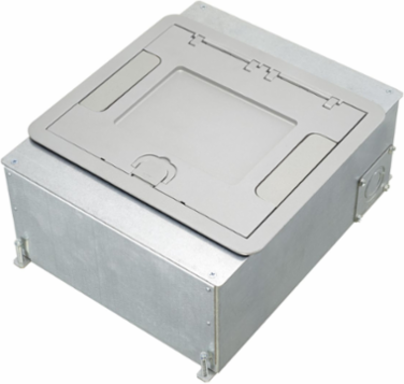

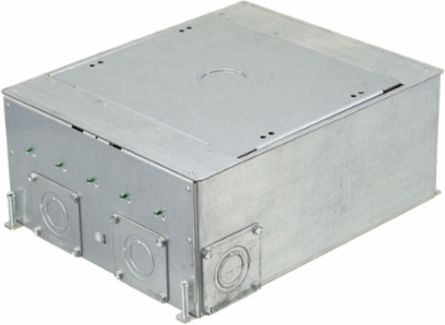

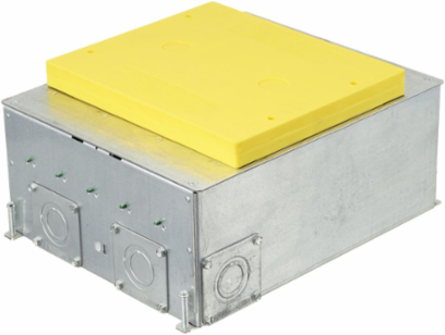

Hubbell Premise Wiring CFB45G55E Recessed 4/5-Gang Concrete Floorbox, 5.59 Inch Depth, Galvanized Steel
- MPN: CFB45G55E
- UPC: 783585695396
- PPN: HBL-CFB45G55E
- UNSPSC: 39121307
CAD
$658.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 4/5-Gang CFB E-Series Box for Rectangular Covers, 5.59" Minimum Depth of Pour
Features
- Recessed 4/5-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 5.59" Minimum Depth of Pour
- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (1) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Mounting Type
- Field Installed
- Material
- Galvanized Stamped Steel
- Size
- 14.14 in x 11.09 in x 5.59 in
- Buy American Compliant
- Yes
- Color
- Metallic
- Mounting Method
- Screw Mount Device Mounting Plates
- Device Chamber Grounding Wire
- 6 in #12 AWG Solid Copper Wire
- Large Wiring Chamber Volume
- 105 in³
- Box Finish
- Natural
- Flush Prepour Cover Material
- 16 gauge galvanized steel
Cable EntryThrough Cover
StandardcULus; UL514A Listed
TypeRecessed
Style4 or 5-Gang
ApplicationFor Use in Concrete Floors
Trade Size Knock-Outs(2) 3/4 in, 1 in, 1 1/4 in, 2 in (field installed hubs)
Small Wiring Chamber Volume99 in³
Box Material16 gauge galvanized steel
Top Mounting Plates Material16 gauge galvanized steel
1/2 inch Prepour Cover MaterialYellow Plastic
