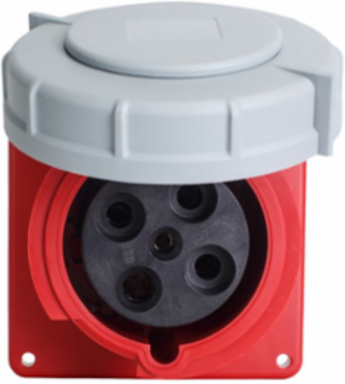

Eaton AH460R7W Eaton Arrow Hart pin and sleeve receptacle — Voltage Rating: 480 V, Amperage Rating: 60A, Number Of Wires: Grounding 4
- MPN: AH460R7W
- UPC: 040893619910
- PPN: COW-AH460R7W
CAD
$215.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve receptacle, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, AHBB60 Back box style, Female, 15 HP, 3PH
Specifications
Key Specifications
| Length | 6.5 in |
|---|---|
| Width | 5 in |
| Product Type | Pin and Sleeve receptacle |
| Amperage Rating | 60A |
| Contact Material | Nickel plated brass |
| Number Of Wires | Grounding 4 |
| Back Box Style Ahbb60 Phase | Three-phase |
| Horsepower | 15 hp |
| Torque Rating | 28 lbf-inch |
| Face/Body Material | Nylon |
| Height | 5.125 in |
|---|---|
| Weight | 1.594 lbs |
| Type | Receptacle |
| Voltage Rating | 480 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Three-pole |
| Gender | Female |
| Allowable Wire Size | #8-2 AWG, #10-2 AWG (ground), #12-16 AWG (pilot) |
| Design Type | Pin and sleeve receptacle |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
