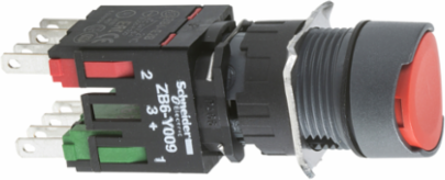

Schneider Electric XB6AA42B Harmony XB6 Red Flush Push Button, 16mm, Spring Return, 1NC, IP65
- MPN: XB6AA42B
- PPN: SCH-XB6AA42B
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric XB6AA42B Harmony XB6 Red Flush Push Button is an essential component for effective automation and control applications. With a robust spring return mechanism and a normally closed (1NC) configuration, this 16mm button ensures reliable operation in a variety of settings. Its IP65 rating highlights its durability and resistance to dust and water, making it an ideal choice for demanding environments. This push button combines functionality with a sleek design, enhancing both the performance and aesthetics of your control systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A at 120 V AC-15, 1.5 A at 240 V AC-15, 0.1 A at 250 V DC-13, 0.22 A at 125 V DC-13 EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V EN/IEC 60947-5-1 appendix C
- Operating Force
- 4.5 N NC changing electrical state
- Contact Operation
- slow-break
- Electrical Reliability
- BB = 10^-8 at 5 V 1 mA with 90% confidence IEC 60947-5-4
- CAD Overall Dimensions
- 18 mm x 18 mm x 57 mm (W x H x D)
- Terminals
- Faston connectors 2.8 x 0.5 mm
- NEMA Degree Of Protection
- NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
- Bezel Material
- plastic
- Operating Position
- any position
- Operator Type
- spring return
- Shock Resistance
- 30 gn 18 ms, 50 gn 11 ms half sine wave acceleration IEC 60068-2-27
- Ambient Temperature for Operation
- -25 to 70 B0C (-13 to 158 B0F)
- Product Certifications
- UL, CCC, GOST, CSA
- Electrical Shock Protection Class
- class II IEC 61140
- Net Weight
- 0.019 kg
- Range Of Product
- Harmony XB6
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above threshold
Rated Insulation Voltage250 V EN/IEC 60947-1
Short-Circuit Protection6 A cartridge fuse gG
Mechanical Durability2,000,000 cycles
Operating Travel2 mm NC changing electrical state, 3.5 mm total travel
Contact Configuration1 NC (normally closed)
Mounting Diameter16 mm (0.63 in)
Panel Thickness1 to 6 mm (0.03 to 0.23 in)
Protection LevelIP65 IEC 60529
Shape of Signaling Unit Headround
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
Operator Profilered flush, unmarked
Vibration Resistance+/- 3 mm 2-500 Hz, 5 gn 2-500 Hz IEC 60068-2-6
Ambient Temperature for Storage-40 to 70 B0C (-40 to 158 B0F)
StandardsUL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, JIS C 4520, EN/IEC 60947-1
Materialplastic bezel
Device Short NameXB6
Toxic Heavy Metal FreeYes
Rohs Exemption InformationYes, proactive compliance (out of EU RoHS scope)
