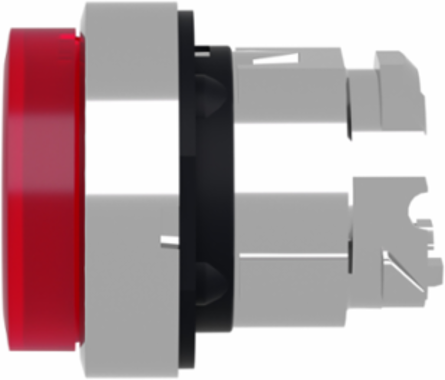

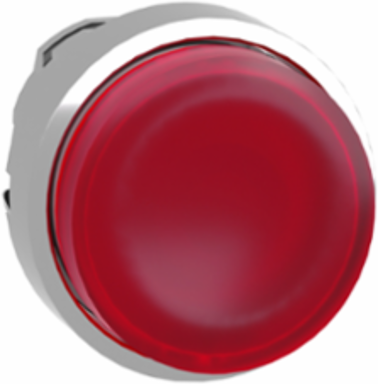

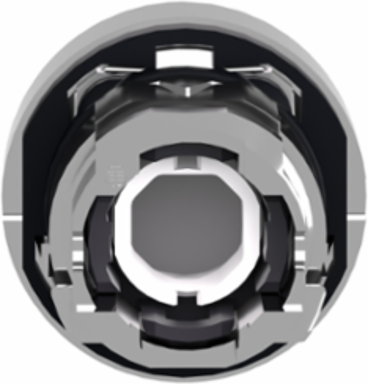

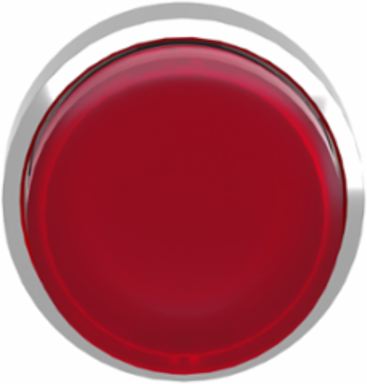

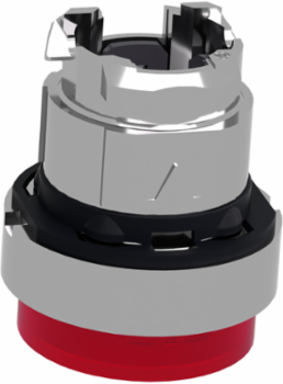

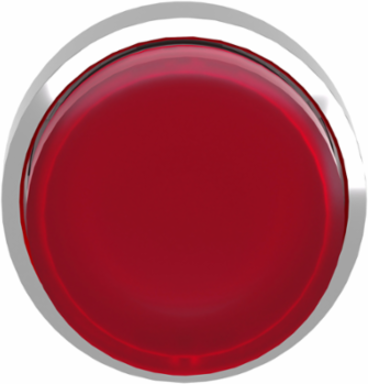

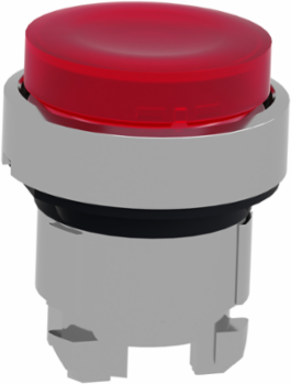

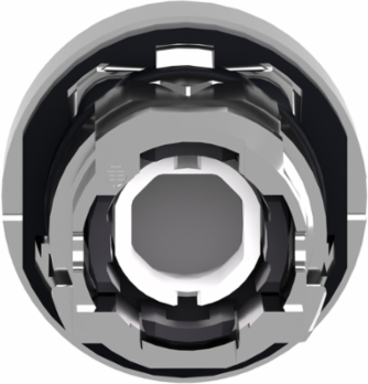

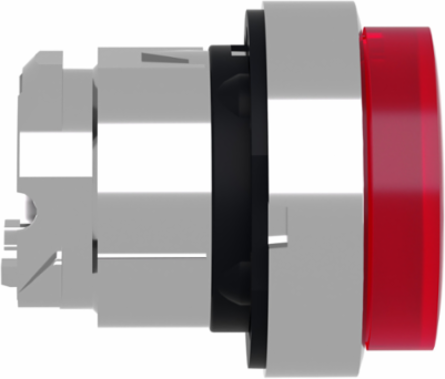

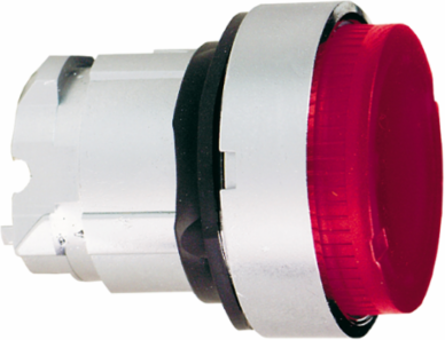

Schneider Electric ZB4BW143 Harmony XB4 22mm Red Projecting Illuminated Push Button Head, IP66
- MPN: ZB4BW143
- PPN: SCH-ZB4BW143
CAD
$13.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, plain lens illuminated projecting red button head operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- This modular head features a industry-standard 22mm cutout diameter, ensuring seamless integration into your existing Harmony XB4 series setups without requiring panel modifications. It serves as a direct drop-in replacement or upgrade for standard industrial control stations, enabling fast maintenance and minimized system downtime.
- As a separate modular component, this item includes the illuminated projecting head only. To achieve a fully functional pushbutton switch, you will need to pair it with a standard Schneider metal mounting collar (such as the ZB4BZ009) along with your choice of specific electrical contact blocks and a universal LED light block.
- Designed with a prominent, projecting red plain lens profile, this actuator is highly visible from a distance and easily distinguishable by touch even when operators are wearing heavy industrial work gloves. The momentary spring-return action ensures instant machine control, reverting to its original position immediately after pressure is released to prevent accidental continuous operation.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated push-button
- Head Type
- standard
- Bezel Material
- chromium plated metal
- Product Compatibility
- universal LED
Range Of ProductHarmony XB4
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profilered projecting, unmarked
Device Short NameZB4
Complementary
- Electrical Composition Code
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

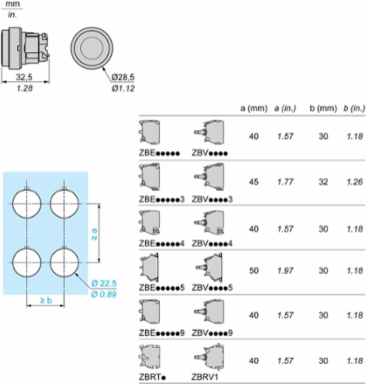

- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 29 mm
Net Weight0.029 kg
Device Presentationbasic sub-assemblies
Mechanical Durability10000000 cycles
Cad Overall Depth33 mm
Environment
- Product Certifications
- DNV || BV || LROS (Lloyds register of shipping) || UL listed || GL || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K
- Overvoltage Category
- class I IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK05 conforming to EN 50102
StandardsEN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
