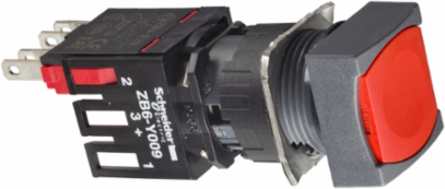

Schneider Electric XB6CA45B Complete push button, Harmony XB6, red square flush pushbutton 16mm spring return 1NO+1NC unmarked
- MPN: XB6CA45B
- PPN: SCH-XB6CA45B
CAD
$40.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Complete push button, Harmony XB6, red square flush pushbutton 16mm spring return 1NO+1NC unmarked
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico
Physical Attributes

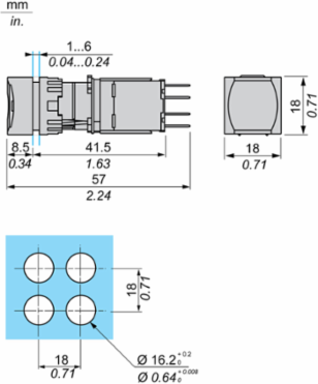

- Cad Overall Depth
- 57 mm
- Cad Overall Width
- 18 mm
Cad Overall Height18 mm
Complementary Attributes
- Ie Rated Operational Current
- 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
Ui Rated Insulation Voltage250 V 3)IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Operating Force
- 3.5 N NO changing electrical state, 4.5 N NC changing electrical state
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Certificate Agency
- UL, GOST, CSA, CCC
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Electrical Reliability
- λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
- Mechanical Durability
- 2000000 cycles
- Operating Position
- any position
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete push-button
- Range Of Product
- Harmony XB6
- Sale Per Indivisible Quantity
- 1
- Short Circuit Protection
- 6 A cartridge fuse gG
- Type Of Operator
- spring return
- Connections Terminals
- Faston connectors 2.8 x 0.5 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Travel1 mm NO changing electrical state), 2 mm NC changing electrical state), 3.5 mm total travel)
Terminals Description Iso N 1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Ie Rated Operational Current3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB6
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameXB6
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Diameter16 mm
Operator Profilered flush, unmarked
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shape Of Signaling Unit Headsquare
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- complete push-button
Range Of ProductHarmony XB6
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
