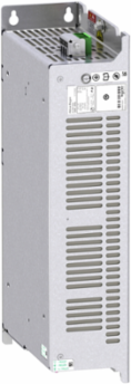

Schneider Electric ATVRD15N4 Regenerative Unit 15 kW, IP20, 11.5 kg for Altivar Drives

MPN: ATVRD15N4
PPN: SCH-ATVRD15N4
UNSPSC: 39122001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 15kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 11.5kg, and its dimensions are 105mm wide, 399mm high, 235mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Features

Plug-and-work solution.
Easy to install.
For simple industrial machines.
Energy saving.
Less timefor wiring and design.
Different size for easy integration in all machine.
Performance with no settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	235 mm

Weight	13696.2 g

Complementary Attributes

Maximum Dc Bus Voltage	300...880 V DC
Rated Power In W	13.5 kW
Us Rated Supply Voltage	380...500 V - 15...10 %

Maximum Voltage Drop At Rated Load	3 %
Ue Rated Operational Voltage	456...778 V DC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Connection	control removable screw terminal block 0.5...1.5 mm², 20 AWG...16 AWG bottom)power supply removable screw terminal block 6 mm², 8 AWG top), DC bus removable screw terminal block 6 mm², 8 AWG bottom)
Carbon Footprint Of The End Of Life Phase C1 To C4	31 kg CO2 eq., 31.15519586836211
Carbon Footprint Of The Manufacturing Phase A1 To A3	103 kg CO2 eq., 102.6660967854691
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Average Percentage Of Asi Certified Metals	98 %
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1608001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1926
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Device Application	energy regeneration
Fixing Mode	by screws
Operating Position	vertical or horizontal position
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Altivar
Software Version	v6.1
Total Lifecycle Carbon Footprint	5 869 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	referent product
Width Nominal	105 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To provide energy back to the AC supply. Its rated power is equal to 15kW. Its protection index is IP20. This regen unit is compatible with ATV320, ATV340 and ATV900 drives ranges from 7,5 to 15 kW in a standard environment.
Functional Unit Unit	Unit
Recyclability Potential In %	91

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase A4	2.668934224129051, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2.366773624124458, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 730 kg CO2 eq., 5730.331903163726
Local Publishable Date	2026-07-02
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Environmental Characteristic	chemical pollution resistance class 3C3 IEC 60721-3-3dust pollution resistance class 3S2 IEC 60721-3-3
Network Frequency	45...65 Hz
Phase	3 phase
Product Or Component Type	power module
Returnability	Yes
Sustainable Packaging	Yes
Type Of Cooling	fan
Database Version	2023-02
Height Nominal	399 mm
Certificate Agency	cUL
Customs Code	8504409575
Packaging Weight In G	2196.2
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1608001EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1608001EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	5869.18890366581
Environmental Disclosure	ENVPEP1608001EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Phase	3 phase
Range Of Product	Altivar

Product Or Component Type	power module

ETIM

ETIM 8	EC002025
ETIM 10	EC002025

ETIM 9	EC002025

Output Attributes

Output Current	25.9 A 380 V AC continuous)23.2 A 500 V AC continuous)36.5 A 380 V AC transient for 60 s), 29.7 A 500 V AC transient for 60 s)

Input Attributes

Input Current	31.8 A 380 V AC voltage inputs continuous)27.9 A 500 V AC voltage inputs continuous)43.1 A 380 V AC voltage inputs transient for 60 s), 36.3 A 500 V AC voltage inputs transient for 60 s)
