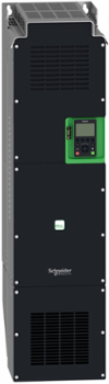

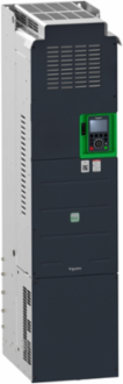

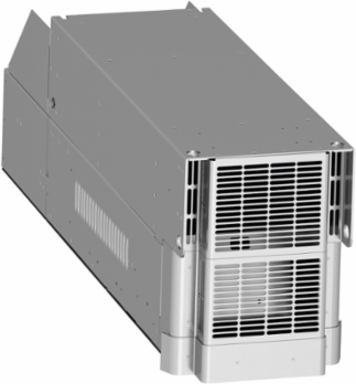

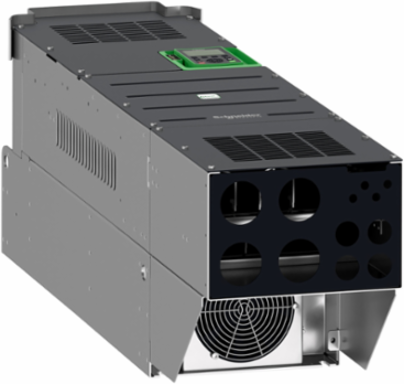

Schneider Electric ATV930C11N4 variable speed drive, Altivar Process ATV900, ATV930, 110kW, 380 to 480V, with braking unit, IP20
- MPN: ATV930C11N4
- PPN: SCH-ATV930C11N4
- UNSPSC: 39122003
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 110kW/150HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW/125HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Features
- Embedded power measurement and energy dashboard
- Embedded process monitoring and control
- Stop and Go function to reduce energy consumption
- Asset monitoring and protection
- Drift monitoring
- Easy maintenance via a dynamic QR code
- Proven technical cooling and harmonics solutions
- Modular and compact design
- Easy grid integration
Documentation & Downloads

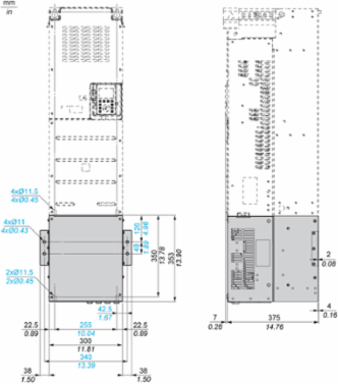

Specifications
Key Specifications
| Country of Origin | Brazil |
|---|---|
| Depth | 393 mm |
| Weight | 123000 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Ethernet IP/ TCP, Modbus |
|---|
Complementary Attributes
| Maximum Thdi | <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12 |
|---|---|
| Brake Chopper Integrated | true |
| Maximum Output Frequency | 599 Hz |
| Maximum Transient Current | 253 A 60 s normal duty)259.5 A 60 s heavy duty) |
| Maximum Acceleration Under Shock Impact During Operation | 150 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load During Transport | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibratory Load During Storage | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load During Operation | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load During Transport | 1.5 mm at 2...13 Hz |
| Ue Rated Operational Voltage | 380...480 V 110.0 kW 150 hp normal duty, 380...480 V 90.0 kW 125 hp heavy duty |
|---|---|
| Maximum Input Current Per Phase | 201.0 A |
| Maximum Output Voltage | 480.0 V |
| Us Rated Supply Voltage | 380...480 V380...480 V - 15...10 % |
| Maximum Acceleration Under Shock Load During Storage | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibrational Stress During Operation | 10 m/s² at 13...200 Hz |
| Maximum Acceleration Under Vibratory Load During Transport | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load During Storage | 1.5 mm at 2...13 Hz |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Asynchronous Motor Control Profile | constant torque standard, variable torque standard, optimized torque mode |
| Data Format | Modbus serial, 8 bits, configurable odd, even or no parity |
| Emc Filter | integrated, with EMC plate option |
| Line Current | 201.0 A 380 V normal duty)170.0 A 380 V heavy duty)165.0 A 480 V normal duty), 143.0 A 480 V heavy duty) |
| Noise Level | 86/188/EEC, 69.9 dB |
| Product Destination | synchronous motors, asynchronous motors |
| Synchronous Motor Control Profile | permanent magnet motor, synchronous reluctance motor |
| Certificate Agency | UL, CSA, TÜV |
| Environmental Class During Transport | class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 17.5101795918, 18 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 888 kg CO2 eq., 887.9897142857 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| 1 Phase Low Current Possible | false |
| Apparent Power | 121.8 kVA 380...480 V normal duty)102.6 kVA 380...480 V heavy duty) |
| Assembly Style | enclosed |
| Base Load Current At Low Overload | 211.0 A |
| Computer Port | true |
| Device Application | Industrial Application |
| Isolation | between power and control terminals |
| Method Of Access | slave Modbus TCP |
| Mounting Mode | wall mount |
| Nominal Switching Frequency | 2.5 kHz |
| Number Of Hw Interfaces Industrial Ethernet | 2 |
| Number Of Output Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Overvoltage Category | III |
| Power Loss Static Current Independent | 67.0 W |
| Product Or Component Type | variable speed drive |
| Prospective Line Isc | 50 kA |
| Range Of Product | Altivar Process ATV900 |
| Relative Symmetric Mains Voltage Tolerance | 10 % |
| Returnability | Yes |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | true |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 81 091 kg CO2 eq. |
| Type Of Polarization | no impedanceno impedance Modbus serial |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Application In Industrial Area Permitted | true |
| Data Source | extrapolated product |
| Width Nominal | 320 mm |
| Supporting Protocol For Tcp/Ip | true |
| Customs Code | 8504404000 |
| Permitted Relative Humidity During Transport | class 2K5 according to EN 60721-3 |
| Supporting Protocol For Data Highway | false |
| With Safety Function Safe Brake Management Sbc/Sbt | true |
| With Safety Function Safe Operating Stop Sos | false |
| With Safety Function Safe Speed Monitor Ssm | false |
| With Safety Function Safe Torque Off Sto | true |
| With Safety Function Safely Limited Speed Sls | true |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Connector Type | 2 RJ45, 1 RJ45 |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Encoder Protocol | 1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL |
| Motor Slip Compensation | adjustable, automatic whatever the load, can be suppressed, not available in permanent magnet motor law |
| Phase | 3 phase, single phase |
| Protection Type | safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive |
| Transmission Rate | 10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s |
| Environmental Class During Storage | class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1 |
| Carbon Footprint Of The Distribution Phase A4 | 15.8695102041, 16 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 7 kg CO2 eq., 7.3310008163 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 80 162 kg CO2 eq., 80162.1788566133 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Variable speed drive - VSD Compacts |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1903002EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1924 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | YES_SSI2Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| 4 Quadrant Operation Possible | true |
| Application In Domestic And Commercial Area Permitted | false |
| Base Load Current At High Overload | 173.0 A |
| Braking To Standstill | by DC injection |
| Design Of Frequency Changer | U converter |
| Housing Material | sheet steel |
| Marking | CE |
| Motor Power Kw | 110.0 kW normal duty90.0 kW heavy duty |
| Network Frequency | 50-60 Hz |
| Number Of Addresses | 1-2471-247 Modbus serial |
| Number Of Hw Interfaces Serial Rs485 | 1 |
| Operating Element Present | true |
| Optical Interface Present | false |
| Power Loss Per Device Current Dependent | 2638.0 W |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | process for industrial |
| Quantity Per Set | 1 |
| Regulation Loop | adjustable PID regulator |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Software Version | EIME v5.8.1 |
| Supporting Protocol For Bacnet | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | true |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Switching Frequency | 1...8 kHz adjustable2.5...8 kHz with derating factor |
| Transmission Frame | RTU |
| Updatability | Upgradeable through digital modules |
| With Safety Function Safe Programmable Logic | false |
| Database Version | 2016-11 |
| Height Nominal | 1205 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Emc Limit Value Complied | true |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| With Safety Function Safe Direction Sdi | false |
| With Safety Function Safe Position Sp | false |
| With Safety Function Safe Stop 1 Ss1 | true |
| With Safety Function Safely Limited Position Slp | false |
| With Sft Fct Safe Stop 2 Ss | false |
| Functional Unit Description | To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase. |
| Functional Unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 135771 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor) |
|---|---|
| Ambient Air Transport Temperature | -25-70 °C, -25-70 °C |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 81090.8792615113 |
| Environmental Disclosure | ENVPEP1903002EN |
| Ip Degree Of Protection | IP21 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1903002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Permitted Relative Humidity During Operation | class 3K5 according to EN 60721-3 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Environmental Class During Operation | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1903002EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2019-06-01 |
| Type Of Verification For The Pep | Independent external review |
| Permitted Relative Humidity During Storage | class 1K5 according to EN 60721-3 |
General Attributes
| Phase | 3 phase, single phase |
|---|---|
| Range Of Product | Altivar Process ATV900 |
| Product Or Component Type | variable speed drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|---|
| ETIM 10 | EC001857 |
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles |
|---|---|
| Nominal Output Current | 211.0 A |
| Continuous Output Current | 211 A 4 kHz normal duty173 A 4 kHz heavy duty |
|---|---|
| Nominal Output Power | 110.0 W |
Input Attributes
| Discrete Input Number | 10 |
|---|
| Number Of Input Phases | 3 |
|---|
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
