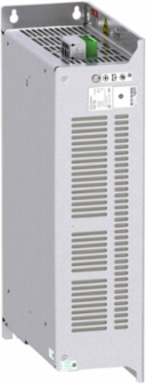

Schneider Electric ATVRU75N4 Regenerative Energy Unit for Altivar Drives, 7.5kW, IP20, 6kg
- MPN: ATVRU75N4
- PPN: SCH-ATVRU75N4
CAD
$4546.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 7.5kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 6kg and its dimensions are 80mm wide, 337mm high, 175mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Sweden, United States
Depth175 mm
Complementary Attributes
- Maximum Dc Bus Voltage
- 300...880 V DC
- Rated Power In W
- 6.8 kW
Maximum Voltage Drop At Rated Load3 %
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- control removable screw terminal block 0.5...1.5 mm², 20 AWG...16 AWG bottom)power supply removable screw terminal block 2.5...4 mm², 12 AWG...10 AWG top), DC bus removable screw terminal block 2.5...4 mm², 12 AWG...10 AWG bottom)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 16 kg CO2 eq., 15.99653778850069
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 65 kg CO2 eq., 64.69893199917509
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Average Percentage Of Asi Certified Metals
- 94 %
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1604005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Device Application
- energy regeneration
- Fixing Mode
- by screws
- Operating Position
- vertical or horizontal position
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Altivar
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 5 312 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To provide energy back to the AC supply. Its rated power is equal to 7,5kW. Its protection index is IP20. This regen unit is compatible with ATV320, ATV340 and ATV900 drives ranges from 0 to 7,5 kW in a standard environment.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 91
- Width Nominal
- 80 mm
- [Ue] Rated Operational Voltage
- 456...778 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504409575
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase [A4]1.524676564041889, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.96906232873906, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]5 228 kg CO2 eq., 5227.671209903749
Local Publishable Date2026-07-02
Stocking FlagN
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Environmental Characteristicchemical pollution resistance class 3C3 IEC 60721-3-3dust pollution resistance class 3S2 IEC 60721-3-3
Network Frequency45...65 Hz
Phase3 phase
Product Or Component Typepower module
ReturnabilityYes
Sustainable PackagingYes
Type Of Coolingfan
Pep CodeENVPEP1604005EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; low voltage; 2018; Europe, EU-27
Height Nominal337 mm
Certificate AgencycUL
[Us] Rated Supply Voltage380...500 V - 15...10 %
Package Weight(Lbs)7.510 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1604005EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1604005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint5311.860418584206
Environmental DisclosureENVPEP1604005EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar
Product Or Component Typepower module
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Output Attributes
- Output Current
- 13.4 A 380 V AC continuous)11.9 A 500 V AC continuous)18.4 A 380 V AC transient for 60 s), 15.4 A 500 V AC transient for 60 s)
Input Attributes
- Input Current
- 16.5 A 380 V AC voltage inputs continuous)14.5 A 500 V AC voltage inputs continuous)22.9 A 380 V AC voltage inputs transient for 60 s), 19.1 A 500 V AC voltage inputs transient for 60 s)
Input Power6.8 kW 380...500 V AC voltage inputs continuous)10.2 kW 380...500 V AC voltage inputs transient for 60 s)
