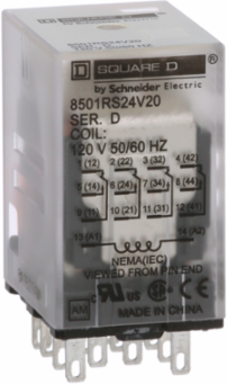

Square D 8501RS24V20 Miniature Plug-In Relay 0.167 HP, 4PDT, 120 VAC Coil
- MPN: 8501RS24V20
- UPC: 785901031840
- PPN: SCH-8501RS24V20
CAD
$83.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 3 ampere resistive rating at 277 VAC, at 120 VAC and at 30 VDC, a 1/16 HP rating at 120 VAC, and a 0.5 amperage inductive break rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Relay Type
- low voltage
- Product Or Component Type
- Miniature Relay
Range Of Product8501R
Complementary
- [Uc] Control Circuit Voltage
- 120 V AC
- Local Signalling
- no indicator
- Contacts Material
- gold plated bifurcated silver
- Shape Of Pin
- spade
- Rated Breaking Capacity
- 0.5 A 120 V AC inductive control circuit UL 508 || 3 A 120 V AC resistive control circuit UL 508 || 3 A 277 V AC resistive control circuit UL 508 || 3 A 30 V DC resistive control circuit UL 508
- Width
- 21 mm
- Product Compatibility
- 8501NR45
- Control Type
- without test button
Height27.9 mm
Mounting Supportsocket
Rated Power In Hp0.167 120 V AC
Switch Function4PDT
Operating Time20 ms - pick-up || 20 ms - drop-out
Depth41.5 mm
Maximum Switching Voltage300 V AC || 30 V DC
Environment
- Product Certifications
- UL listed || UL recognized || CSA || CE
Ambient Air Temperature For Operation-40-131 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environmental DisclosureENVPEP1511008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
