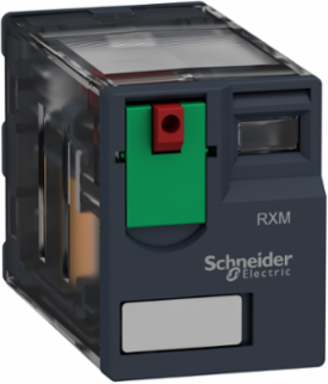

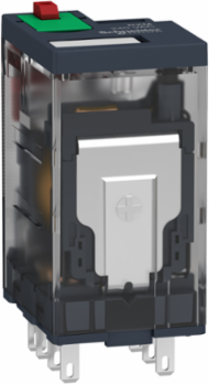

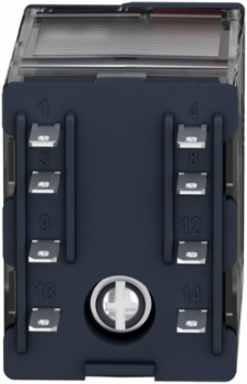

Schneider Electric RXM2AB1F7 Miniature Plug-in Relay 120V AC, 12A, 2 C/O, IP40, Lockable Test Button

MPN: RXM2AB1F7
PPN: SCH-RXM2AB1F7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$14.35

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

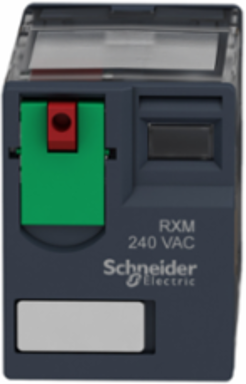

"This Harmony RXM miniature plug-in relay has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0

Features

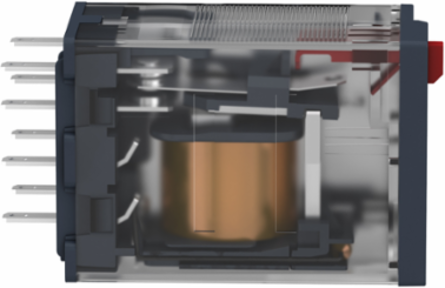

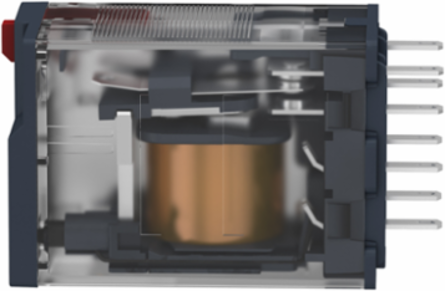

Custom-engineered to serve as an efficient interposing or switching node, this miniature plug-in relay physically isolates delicate low-power control circuits (like PLC outputs) from higher-power field loads. When the internal coil is energized, it mechanically snaps its contacts closed to safely route pilot signals, engage motor starter coils, or flag system status changes across your automated facility floor.
This relay features a 2 C/O contact configuration, giving you two independent sets of changeover contacts within a single compact housing. The silver alloy contacts carry a conventional thermal current rating of 12 Amps at 250 V AC or 28 V DC under standard resistive loads (AC-1/DC-1), providing reliable multi-circuit switching capacity.
Belonging to the premium Harmony Electromechanical Relays (Zelio Relay / RXM series) line, this model is equipped with a 120 V AC operating coil (50/60 Hz). The energy-efficient coil operates with an average power consumption of 1.2 VA, ensuring a rapid response time of under 20 milliseconds to execute control commands without introducing perceptible lag into your process loop.

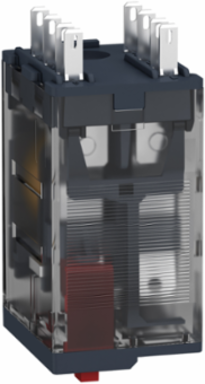

Featuring standard flat, spade-type pins, this plug-in relay is designed to seat firmly into matching Schneider DIN-rail sockets such as the finger-safe RXZE2M114M (screw clamp) or RXZE2S114M (bus socket) assemblies. Carrying a finger-safe IP40 chassis protection rating and full UL, CSA, CE, and Lloyd's listings, this module guarantees hassle-free compliance with strict Canadian electrical safety audits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Indonesia, Singapore, United States

Complementary Attributes

Control Circuit Type	AC
Maximum Switching Capacity	3000 VA/336 W
Minimum Switching Capacity	170 mW 10 mA, 17 V

Line Rated Current	12 A
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	96...132 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	lockable test button, lockable test button
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Certificate Agency	UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
[Uc] Control Circuit Voltage	AC 50/60 Hz, 120 V
Carbon Footprint Of The Distribution Phase [A4]	0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	18 kg CO2 eq., 18.3299946528
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2106019EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	1.2-1.2 60 Hz
Average Resistance	4430 Ohm 20 °C +/- 15 %
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Time	20 ms
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000

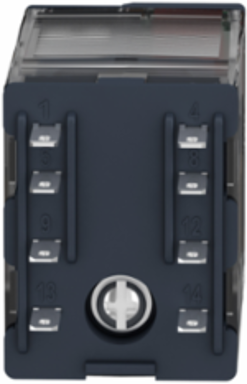

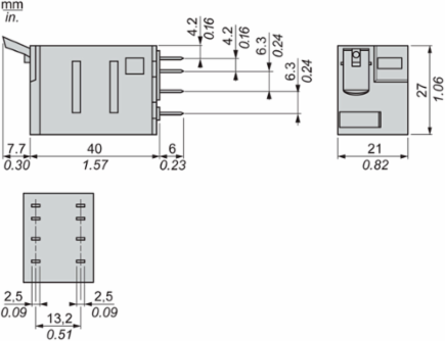

Shape Of Pin	flat (faston type)
Software Version	EIME v5.9.1
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	120 V
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; 120V; US
Recyclability Potential In %	55
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Status Led	without, without
[Ie] Rated Operational Current	6 A 250 V AC) NC IEC12 A 28 V DC) NO IEC12 A 250 V AC) NO IEC6 A 28 V DC) NC IEC, 12 A 28 V DC) UL, 12 A 277 V AC) UL
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2927376966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Consumption	1.2 VA 60 Hz
Compatibility Code	RXM
Contacts Type And Composition	2 C/O
Load Current	12 A 250 V AC12 A 28 V DC
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	miniature relay
Returnability	Yes
Series Name	RXM series
Shock Resistance	10 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	19 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2106019EN
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US
[Ithe] Conventional Enclosed Thermal Current	12 A
Drop-out Voltage Threshold	>= 0.15 Uc>= 0.15 Uc
Package Weight(Lbs)	36.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2106019EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	18.6325724184
Circularity Profile	ENVEOLI2106019EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2106019EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
