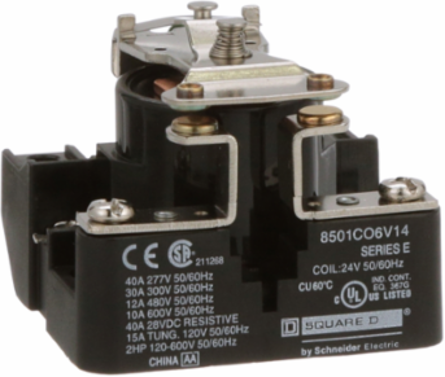

Square D 8501CO6V14 Power Relay, Type C, 2.0 HP, 30A Resistive, SPST, 24 VAC Coil
Square D 8501CO6V14 Power Relay, Type C, 2.0 HP, 30A Resistive, SPST, 24 VAC Coil
- MPN: 8501CO6V14
- UPC: 785901052029
- PPN: SCH-8501CO6V14
- UNSPSC: 39122324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$51.08/ EA
Description
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPST contact configuration with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 24 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 2 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 10 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Features
- Class 8501 Type C relays are ideally suited for controlling small single phase motors.
- Riveted contruction helps to increase the mechanical life of the relay.
- UL Listed and CSA Approved.
- Open style construction allows for visible confirmation of contact state.
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E78351 CCN NLDX, CSA, CE
Complementary Attributes
- Line Rated Current
- 30 A
- Rated Power In HP
- 2 hp
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Contacts Type And Composition
- 1 NO
- Device Short Name
- type C
- Mounting Support
- panel mounting
- Phase
- 1 phase
- Product Or Component Type
- power relay
- Returnability
- Yes
- Switch Function
- SPST
- Uc Control Circuit Voltage2
- 24 V AC 50/60 Hz
- Medium Desc
- Power Relay, Type C, 2.0 HP, 30A resistive at 300 VAC, SPST, 1 normally open contact, 24 VAC coil
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-12
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 10 copper
Device Applicationsuited for controlling small single phase motors and other light loads
Hold In Power Consumption In VA10-10 VA
Package Weight Lbs222.26 g
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPower Relay 8501C
Sustainable PackagingNo
Tightening Torque11-15 lbf.in
Connections Terminalsscrew clamp terminal
Stocking FlagN
Pep CodeENVPEP1705008EN
Uc Control Circuit Voltage524 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -22-122 °F
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1705008EN
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1705008EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- Power Relay 8501C
Product Or Component Typepower relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications

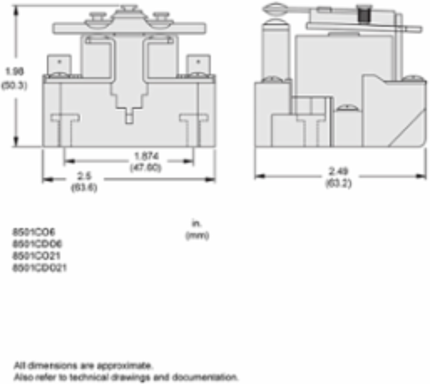

- Depth
- 2.25 in
