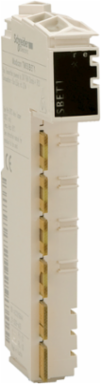

Schneider Electric TM5SBET1 Modicon TM5 Remote Transmitter Module, IP20, 25mA at 24V DC, 100m Cable Distance
- MPN: TM5SBET1
- PPN: SCH-TM5SBET1
- UNSPSC: 32151703
CAD
$176.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote transmitter module provides communication between IP20 remote I/O and distribute power. It is a remote transmitter module with a current consumption of 25mA at 24V DC input/output, 100mA at 5V DC bus and a maximum power dissipation of 1.1W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Features
- Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
- Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
- Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
- Modicon TM5 is characterized by easy cabling and maintenance
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, France |
|---|---|
| Depth | 75 mm |
| Weight | 36 g |
|---|
Physical Attributes
| Bus Length | 2500 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Current Consumption | 25 mA 24 V DC input/output, 100 mA 5 V DC bus |
| Certificate Agency | cULus, GOST-R, CSA, C-tick |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.05742643495295765 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.2118241386977955 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511026EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Marking | CE |
| Number Of Hw Interfaces Other | 1 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM5 |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Vibration Resistance | 1 gn 8.4-150 Hz) on DIN rail3.5 mm 5-8.4 Hz) on DIN rail |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Housing Color | white |
| System Accessory | false |
| Radio Standard Lte | false |
| Data Source | extrapolated product |
| Width Nominal | 12.5 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED green power supply, 1 LED red power supply1 LED yellow communication data bus |
| Carbon Footprint Of The Distribution Phase A4 | 0.012604971921849393, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.02486272237972339, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 44 kg CO2 eq., 44.37221760937369 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Front Installation Possible | false |
| Network Type | DC |
| Power Dissipation In W | 1.1 W |
| Product Or Component Type | remote transmitter module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 46 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Potential Separation Present | false |
| Radio Standard Egprs | false |
| Database Version | 2024-01 |
| Height Nominal | 99 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8517620090 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Functional Unit Description | To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 96.36 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C vertical installation)0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation) |
|---|---|
| Product Compatibility | logic controller, motion controller |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1511026EN |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511026EN |
| Pcr Version | PCR-4-ed4-FR-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ip Degree Of Protection | IP20, IP67 |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 45.67893587732602 |
| Circularity Profile | ENVEOLI1511026EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | remote transmitter module |
|---|
| Range Of Product | Modicon TM5 |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|---|
| ETIM 10 | EC001604 |
| ETIM 9 | EC001604 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
