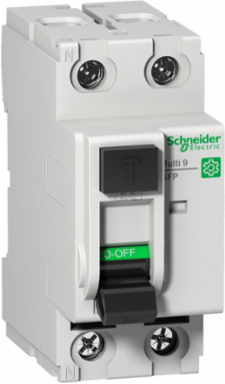

Multi9 GFP RCCB 2P 40A 30mA A-SI Type IP20
Schneider Electric

Schneider Electric M9R81240 Multi9 GFP RCCB 2P 40A 30mA A-SI Type IP20

  • MPN: M9R81240
  • PPN: SCH-M9R81240
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $932.06

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, A-SI type protection class and a 26mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France, Mexico, United States
    Depth60 mm

    Physical Attributes

    Color
    Gray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    40 A 40 °C EN/IEC 61008-1
    Rated Breaking And Making CapacityIdm 1500 A EN/IEC 61008-1

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Certificate Agency
    IEC, UL
    Carbon Footprint Of The Distribution Phase [A4]
    0.0364069023692282, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0163089293723848
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    39 kg CO2 eq., 38.7766666666666
    Local Publishable Date
    2026-07-13
    Stocking Flag
    N
    Device Type
    LV equipment - Low voltage circuit breaker
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    0627
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Commercial
    Connection Pitch
    18 mm between phases
    Control Type
    toggle
    Device Short Name
    GFP
    Energy Efficiency Optimized
    False
    Locking Options Description
    padlocking in OFF position
    Mounting Mode
    clip-on
    Network Frequency
    50/60 Hz
    Neutral Position
    left
    Power Losses Per Pole
    3.6 W
    Product Name
    Multi9 GFP
    Range
    Multi9
    Residual Current Tripping Technology
    voltage independent
    Software Version
    v5.9.4
    Tightening Torque
    3.5-3.5 N.m top or bottom
    Total Power Losses
    7.2 W
    Utilisation Category
    AC-23A EN/IEC 61008-1
    Rated Current 3
    40 A
    Pep Code
    ENVPEP2301023EN
    Pep Verification Date
    2025-04-20
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Low voltage; 2018; Spain, SP
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    59
    Width Nominal
    36 mm
    [Ui] Rated Insulation Voltage
    440 V AC 50/60 Hz
    Earth-leakage Sensitivity
    26 mA UL 105330 mA EN/IEC 61008-1
    Earth-leakage Protection Class
    type A-SI (Super Immunised)
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    215.000 g
    Warranty (In Months)
    18
    Customs Code
    8536200040
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Connections - Terminalstunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.679389575001311, 0.7 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.65180023010561
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label3
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdCOMMERCIAL
    Product Kit IdentifierN
    Contact Position Indicatoryes
    Device Applicationdistribution
    Electromagnetic Compatibility8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
    Local SignallingON, OFF, fault trip
    Mechanical Durability20000 cycles
    Mounting SupportDIN rail
    Network TypeAC
    Number Of Poles2P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeresidual current circuit breaker (RCCB)
    Range Of ProductMulti9
    ReturnabilityYes
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint42 kg CO2 eq.
    Tropicalisation2 IEC 60068-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Earth Leakage Sensitivity 130 mA
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh94.608
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal81 mm
    [Ue] Rated Operational Voltage120/240 V AC 60 Hz240 V AC 50 Hz
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 61008-1
    Rated Conditional Short-circuit CurrentInc 10 kA 100 A gG
    Earth-leakage Protection Time Delayinstantaneous
    Nbr. Of Units In Pkg.1
    Take-backNo
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1177.6
    Tsca RegulationDoes not contain Section 6H Chemical

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Carbon Footprint
    42.1605723035152
    Ambient Air Temperature For Operation
    -25-60 °C-25-60 °C
    Eu Rohs Directive
    Compliant By Exemption
    Ip Degree Of Protection
    IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    95-95 % 55-55 °C
    Pep Verification Date
    2025-04-20
    Psr Version
    PSR-0005-ed2-2016 03 29
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    9 Mm Pitches4
    Environmental DisclosureENVPEP2301023EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2301023EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    residual current circuit breaker (RCCB)
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000003
    ETIM 9EC000003
