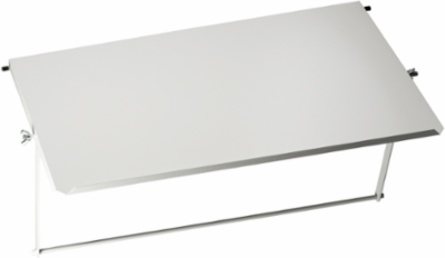

Schneider Electric NSYSDT6 Folding Support Tray 600 mm, Adjustable 30 kg Load Capacity
Schneider Electric NSYSDT6 Folding Support Tray 600 mm, Adjustable 30 kg Load Capacity
- MPN: NSYSDT6
- PPN: SCH-NSYSDT6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$678.46/ EA
Description
Folding support tray for Spacial enclosures. Enclosure dimensions is W is600 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.
Specifications
Physical Attributes
- Color
- door Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 30 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 x fixing element, 1 x folding support tray
- Mounting Location
- door cross rail, on door reinforcement frame
- Carbon Footprint Of The Distribution Phase A4
- 0.298372342, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.343687689, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- door accessories
- Fixing Mode
- direct fixing - door
- Mounting Support
- direct mounting
- Product Or Component Type
- folding support tray
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 11 kg CO2 eq.
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 1550
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Offer Owner Code
- 190789
- Width Nominal
- nominal: 325 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 600 mm, - W: 600 mm, - W: 600 mm, - W: 600 mm
Operating Angle45 °, 60 °, 75 °, 90 °
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.643813786
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.734933621
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in height, steps of 25 mm door
Energy Efficiency OptimizedFalse
Materialdoor steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Surface Finishpainted
Thickness1.5 mm
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unitunit
Reference Lifetime In Y220
Recyclability Potential In 298
Height Nominal50 mm
Width Realnominal: 325 mm
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 11.02080744
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- folding support tray
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 12.8 in
Depth350 mm
