TeSys Deca Reversing Contactor 150A AC-3 110V Coil 3P
TeSys Deca Reversing Contactor 150A AC-3 110V Coil 3P
Schneider Electric

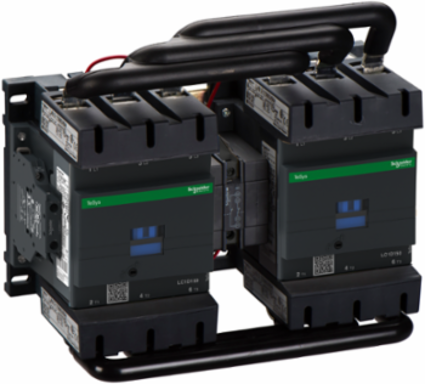

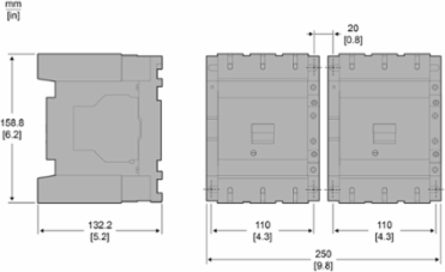

Schneider Electric LC2D150F7 TeSys Deca Reversing Contactor 150A AC-3 110V Coil 3P

  • MPN: LC2D150F7
  • PPN: SCH-LC2D150F7

CAD

$3467.55

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys Deca Reversing Contactor 150A AC-3 110V Coil 3P

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth148 mm

Complementary Attributes

Control Circuit Voltage Limits
0.3...0.5 Uc (55-55 °C):drop-out AC 50/60 Hz, 0.8...1.15 Uc (55-55 °C):operational AC 50/60 Hz
Maximum Horse Power Rating
40 hp at 200/208 V AC 60 Hz for 3 phase motors, 50 hp at 230/240 V AC 60 Hz for 3 phase motors, 100 hp at 460/480 V AC 60 Hz for 3 phase motors, 125 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate
1200 cyc/h 60 °C
Minimum Switching Voltage
17 V for signalling circuit
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 1660 A at 440 V for power circuit conforming to IEC 60947
Control Circuit TypeAC 50/60 Hz
Minimum Switching Current5 mA for signalling circuit
Rated Breaking Capacity1400 A at 440 V for power circuit conforming to IEC 60947

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
10 A gG for signalling circuit conforming to IEC 60947-5-1, 315 A gG at <= 690 V coordination type 1 for power circuit, 250 A gG at <= 690 V coordination type 2 for power circuit
Electrical Durability
0.85 Mcycles 150 A AC-3 <= 440 V, 1 Mcycles 200 A AC-1 <= 440 V, 0.85 Mcycles 150 A AC-3e <= 440 V
Insulation Resistance
> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mechanical Robustness
vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor closed15 Gn for 11 ms, shocks contactor open6 Gn for 11 ms
Mounting Support
plate, rail
Power Dissipation Per Pole
24 W AC-1, 13.5 W AC-3, 13.5 W AC-3e
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation Category
AC-1, AC-3, AC-3e
[Icw] Rated Short-time Withstand Current
250 A 40 °C - 10 min for power circuit, 580 A 40 °C - 1 min for power circuit, 1200 A 40 °C - 10 s for power circuit, 1400 A 40 °C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
[Ue] Rated Operational Voltage
power circuit <= 1000 V AC 25...400 Hz, power circuit <= 300 V DC
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, power circuit connector 2 10-50 mm²flexible without cable end, power circuit connector 1 10-120 mm²flexible with cable end, power circuit connector 2 10-50 mm²flexible with cable end, power circuit connector 1 10-120 mm²solid without cable end, power circuit connector 2 10-50 mm²solid without cable endcontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1 1-2.5 mm²solid without cable end, power circuit connector 1 10-120 mm²flexible without cable end
Non-overlap Time
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]
11.330063403179329, 11 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
57 kg CO2 eq., 56.905760411244486
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI100405EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1904
China Rohs In Scope
No
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Coil Technology
built-in bidirectional peak limiting diode suppressor
Contact Compatibility
M13
Device Short Name
LC2D
Flame Retardance
V1 conforming to UL 94
Mechanical Durability
8 Mcycles
Number Of Poles
3P
Pole Contact Composition
3 NO
Product Name
TeSys Deca
Protective Treatment
TH IEC 60068-2-30
Range Of Product
TeSys Deca
Signalling Circuit Frequency
25...400 Hz
Sustainable Packaging
Yes
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3NO, a control circuit voltage 230V AC, a power circuit voltage 1000V and a rated operational current 150 A.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
2562.3
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; FR
Height Nominal
158 mm
[Ith] Conventional Free Air Thermal Current
200 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947
Package Weight(Lbs)
6.5 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Inrush Power In Va280-350 VA 60 Hz 0.9 20 °C), 280-350 VA 50 Hz 0.9 20 °C)
Interlocking Typemechanical, electrical
Motor Power Kw40 kW at 220...230 V AC 50 Hz, 75 kW at 380...400 V AC 50 Hz, 80 kW at 415...440 V AC 50 Hz, 90 kW at 500 V AC 50 Hz, 100 kW at 660...690 V AC 50 Hz, 75 kW at 1000 V AC 50 Hz
Operating Time20...35 ms closing, 40...75 ms opening
Power Range30-50 kW 200-240 V 3 phase, 55-100 kW 380-440 V 3 phase, 55-100 kW 480-500 V 3 phase
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Certificate AgencyBV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA
[Ie] Rated Operational Current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 1000 V IEC 60947-4-1
Hold-in Power Consumption In Va2-18 VA 20 °C) 0.9 60 Hz, 2-18 VA 20 °C) 0.9 50 Hz
Carbon Footprint Of The Distribution Phase [A4]1.9222858853720504, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7 kg CO2 eq., 0.6795334937194923
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]171 kg CO2 eq., 171.1966726618705
Local Publishable Date2025-02-26
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Compatibility CodeLC2D
Contactor Coil Voltage110 V AC standard
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation3-4.5 W 50/60 Hz
Motor Starter Typereversing contactor
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typereversing contactor
RangeTeSys
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint242 kg CO2 eq.
Pep CodeENVPEP0603001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %54
Width Nominal266 mm
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
242.03431585538587
Climatic Withstand
IACS E10
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP0603001EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-40-60 °C-40-60 °C, 60-70 °C with derating
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI100405EN
Environmental DisclosureENVPEP0603001EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
reversing contactor
Range Of ProductTeSys Deca

ETIM

ETIM 8
EC000010
ETIM 9EC000010

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Device Presentation
preassembled with reversing power busbar
