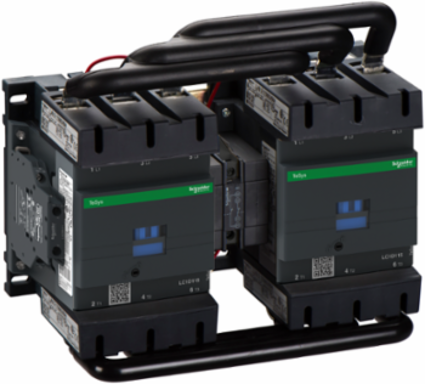

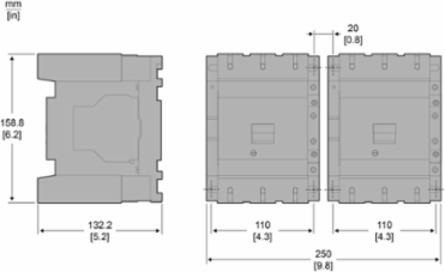

Schneider Electric LC2D115F7 TeSys Deca Reversing Contactor 3P 115A 110V AC Coil 266mm Width
- MPN: LC2D115F7
- PPN: SCH-LC2D115F7
CAD
$2729.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). Rated 115A AC-3 55kW@400V, it includes a 110V 50/60Hz AC coil, 2NO+2NC aux contacts, mechanical and electrical interlock. It provides 110V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical and electrical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 110V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 0.9 million cycles at 115A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth148 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11260 A at 440 V for power circuit conforming to IEC 60947
- Maximum Operating Rate
- 2400 cyc/h 60 °C
- Minimum Switching Voltage
- 17 V for signalling circuit
Control Circuit Voltage Limits0.3...0.5 Uc (55-55 °C):drop-out AC 50/60 Hz0.8...1.15 Uc (55-55 °C):operational AC 50/60 Hz
Maximum Horse Power Rating30 hp at 200/208 V AC 60 Hz for 3 phase motors40 hp at 230/240 V AC 60 Hz for 3 phase motors75 hp at 460/480 V AC 60 Hz for 3 phase motors100 hp at 575/600 V AC 60 Hz for 3 phase motors
Minimum Switching Current5 mA for signalling circuit
Rated Breaking Capacity1100 A at 440 V for power circuit conforming to IEC 60947
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Inrush Power In Va
- 280-350 VA 60 Hz 0.8 20 °C), 280-350 VA 50 Hz 0.8 20 °C)
- Interlocking Type
- electrical, mechanical
- Motor Power Kw
- 30 kW at 220...230 V AC 50-60 Hz55 kW at 380...400 V AC 50-60 Hz59 kW at 415 V AC 50-60 Hz, 59 kW at 440 V AC 50-60 Hz75 kW at 500 V AC 50-60 Hz80 kW at 660...690 V AC 50-60 Hz65 kW at 1000 V AC 50-60 Hz
- Power Dissipation Per Pole
- 24 W AC-17.9 W AC-3, 7.9 W AC-3e
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- Certificate Agency
- BV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible without cable endcontrol circuit screw clamp terminals 1 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-2.5 mm²solid without cable endpower circuit connector 2 10-50 mm²flexible without cable endpower circuit connector 1 10-120 mm²flexible with cable endpower circuit connector 2 10-50 mm²flexible with cable endpower circuit connector 1 10-120 mm²solid without cable endpower circuit connector 2 10-50 mm²solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1 1-2.5 mm²solid without cable end, power circuit connector 1 10-120 mm²flexible without cable end
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 11.24154728284199, 11 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 56 kg CO2 eq., 56.46118415803164
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI100405EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.6 mOhm - Ith 200 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Contactor Coil Voltage
- 110 V AC standard
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 3-8 W 50/60 Hz
- Motor Starter Type
- reversing contactor
- Operating Time
- 20...50 ms closing6...20 ms opening
- Pole Contact Composition
- 3 NO
- Product Name
- TeSys Deca
- Protective Treatment
- TH IEC 60068-2-30
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 233 kg CO2 eq.
- Pep Code
- ENVPEP0603001EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 54
- Width Nominal
- 266 mm
- [Ie] Rated Operational Current
- 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Package Weight(Lbs)
- 6.500 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability0.8 Mcycles 200 A AC-1 <= 440 V, 0.95 Mcycles 115 A AC-3 <= 440 V, 0.95 Mcycles 115 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor closed15 Gn for 11 ms, shocks contactor open6 Gn for 11 ms
Mounting Supportrail, plate
Power Range30-50 kW 200-240 V 3 phase55-100 kW 380-440 V 3 phase, 55-100 kW 480-500 V 3 phase
Utilisation CategoryAC-1, AC-3, AC-3e
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1power circuit 1000 V IEC 60947-4-1
Hold-in Power Consumption In Va2-18 VA 20 °C) 0.3 60 Hz, 2-18 VA 20 °C) 0.3 50 Hz
Carbon Footprint Of The Distribution Phase [A4]1.9072680268925812, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7 kg CO2 eq., 0.6742246382998087
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]163 kg CO2 eq., 163.00264388489205
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-1250 A gG at <= 690 V coordination type 1 for power circuit200 A gG at <= 690 V coordination type 2 for power circuit
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Contact CompatibilityM13
Device Short NameLC2D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability8 Mcycles
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typereversing contactor
RangeTeSys
ReturnabilityNo
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3NO, a control circuit voltage 230V AC, a power circuit voltage 1000V and a rated operational current 150 A.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2439.66
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal158 mm
[Icw] Rated Short-time Withstand Current250 A 40 °C - 10 min for power circuit550 A 40 °C - 1 min for power circuit950 A 40 °C - 10 s for power circuit1100 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current200 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 25...400 Hzpower circuit <= 300 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0603001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint233.2868679909581
Circularity ProfileENVEOLI100405EN
Environmental DisclosureENVPEP0603001EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
