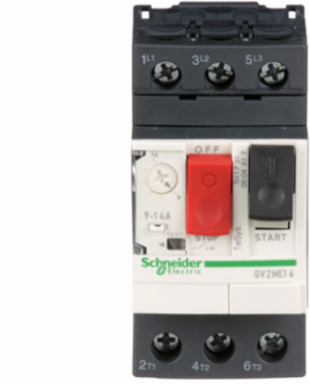

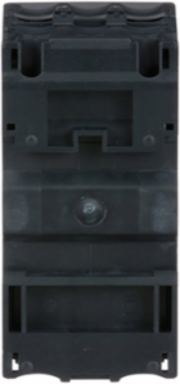

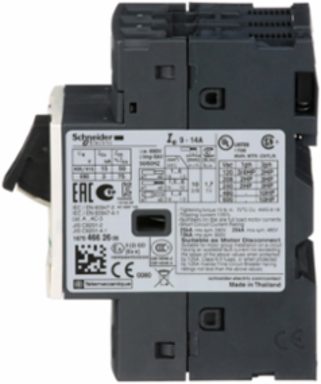

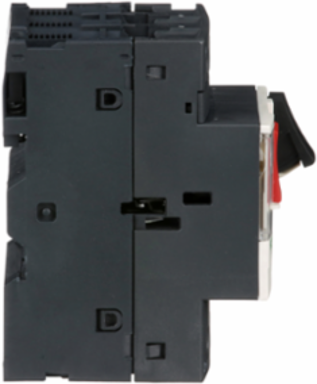

Schneider Electric GV2ME16 TeSys Deca Motor Circuit Breaker 3P 9-14A Thermal Magnetic
- MPN: GV2ME16
- PPN: SCH-GV2ME16
CAD
$172.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 9 ampere to 14 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- The Schneider Electric GV2ME16 is a TeSys GV2 thermal-magnetic motor circuit breaker. It is a "2-in-1" device that provides manual ON/OFF control via push buttons and automatic protection against overloads and short circuits. By eliminating the need for separate fuses and overload relays, it significantly reduces the footprint and wiring complexity of Canadian industrial motor starters.
- This model features a thermal setting range of 9.0 to 14.0 Amps. Using the adjustable dial on the front, you can match the breaker exactly to your motor's Nameplate Full Load Amps (FLA). This is the "sweet spot" for many common Canadian industrial applications, typically protecting 7.5 HP (5.5 kW) motors at 600V or 3 HP motors at 230V.
- In addition to the thermal overload protection, the GV2ME16 contains a magnetic trip element set to 170 Amps. In the event of a phase-to-phase or phase-to-ground short circuit, the breaker trips in milliseconds, protecting your wiring and downstream equipment from the catastrophic "let-through" energy of a fault.
- The GV2ME16 is sensitive to phase loss. If one of the three phases fails (single-phasing), the internal mechanism detects the current imbalance and trips the motor. This is a critical feature for Canadian facilities where a lost phase can quickly overheat motor windings and lead to expensive replacement costs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Thailand, United States, ZZ
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 14 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Motor Power Kw
- 5.5-5.5 kW 400/415 V AC 50/60 Hz7.5-7.5 kW 500 V AC 50/60 Hz9-9 kW 690 V AC 50/60 Hz, 11-11 kW 690 V AC 50/60 Hz
- Range Of Product
- TeSys GV2, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
- Connections - Terminals
- power circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4527026902683291, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.634976413467982
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI121004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2ME
- Device Application
- motor protection
- Energy Efficiency Optimized
- False
- Magnetic Tripping Current
- 253.4-253.4 A
- Mechanical Robustness
- shocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 9-14 A IEC 60947-2
- Total Lifecycle Carbon Footprint
- 11 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1210004EN
- Pep Verification Date
- 2026-03-30
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 49
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 280.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Mounting Positionhorizontal, vertical
Utilisation Categorycategory A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-250 % 400/415 V AC 50/60 Hz IEC 60947-2, 50 % 440 V AC 50/60 Hz IEC 60947-275 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]0.08233418348388603, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.04117841915749615
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 8.86395212531129
Local Publishable Date2026-07-07
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typepush-button
Device Short NameGV2ME
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability100000 cycles
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole2.5 W
Product NameTeSys GV2
RangeTeSys Deca
Software Versionv6.2.4
Sustainable PackagingYes
Tightening Torque1.7 N.m screw clamp terminal
Trip Unit Technologythermal-magnetic
R Thermal Protection Adj Range 39-14 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh98.55
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal89 mm
[Ith] Conventional Free Air Thermal Current14 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.075143831688983
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
