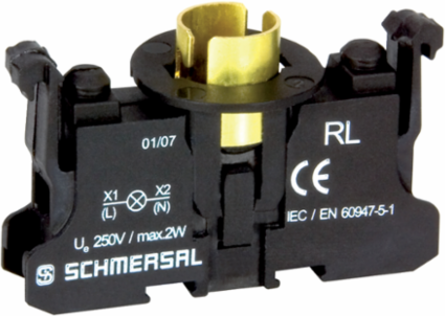

Schmersal 101190088 Light Terminal Block, 250 VAC, Bayonet Mounting, IP20, 46 mm Length
- MPN: 101190088
- PPN: SCM-101190088
CAD
$31.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Light Terminal Block, 250 VAC, Bayonet Mounting, IP20, 46 mm Length
Documentation & Downloads
Specifications
Key Specifications
| Length | 46 mm |
|---|---|
| Depth | 45 mm |
| Width | 10 mm |
|---|
Electrical data
| Rated operating voltage | 250 VAC |
|---|
Mechanical data - Dimensions
| Width | 10 mm |
|---|
| Depth | 45 mm |
|---|
Ambient conditions - Insulation values
| Degree of pollution | 3 |
|---|
General data
| Standards | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Gross weight | 35 g |
| Climatic stress | IEC 60068-2-30 |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
Ambient conditions
| Degree of protection of clips or terminals | IP20 |
|---|---|
| Resistance to vibrations | 5 g |
| Resistant to vibration | 20 g / 10 ... 150 Hz |
| Ambient temperature | -25 ... +75 °C |
|---|---|
| Restistance to shock | 30 g / 18 ms |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, minimum | 0.5 mm², rigid | 0.5 mm², flexible |
| Tightening torque of Clips | 1 Nm |
| Terminal designations | EN 50005 | EN 50013 |
|---|---|
| Cable section, maximum | 2.5 mm², rigid | 1.5 mm², flexible |
Mechanical data
| Installation instructions | pluggable |
|---|---|
| Mounting flange position | 3 |
| Mounting | bayonet |
|---|
Approvals - Standards
| Certificates | cURus |
|---|
