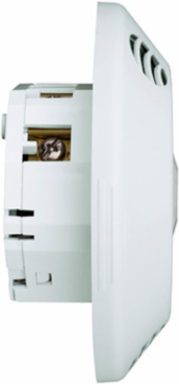

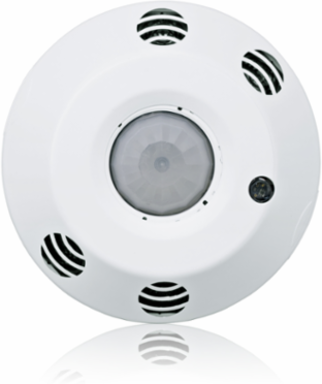

Leviton O5C20-MDW Provolt™ Room Controller 2000 Sq Ft, Ceiling Mount, 120-277V, 0-10V Dimming
- MPN: O5C20-MDW
- UPC: 078477750025
- PPN: LEV-O5C20-MDW
CAD
$486.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Discontinued Product. Room Controller, PRC, Indoor, Line Voltage, Low Profile, 1 Zone, Ceiling Mount, Multi-Technology, 2000 sq ft, Occupancy Sensor Lighting Control, (1) 0-10V DC Sinking Control Signal for dimming ballast or LED Driver. 1 Relay, 120-277V AC
Features
- Simplified daylight harvesting with 1- and 2-zone control for full range 0-10V dimming
- Set demand response dimming capabilities and auto-ON, auto-OFF, partial-ON and partial-OFF with the Provolt Bluetooth Mobile App
- Code-compliant features— -Auto-ON/Auto-OFF -Partial-ON (lights automatically turn ON to 50% when a space is occupied, manual-ON control for above 50%) -Partial-OFF (lights will dim to 30% when is a space is unoccupied
- Basic controls include ON, OFF, dim up and dim down using a 4-button keypads
- Closed loop photocell detects total measurement of both natural and artificial light in the space
- 450 and 2,000 square feet field-of-view units available
- The PRC comes with 180° and 360° photocells for closed loop dimming applications
- Uses ultrasonic (Doppler shift) motion detection giving maximum sensitivity and PIR motion detection and preventing false triggers
- Works in conjunction with 1-, 2- and 4-button keypads (PLVSW) for individual manual zone control
- Ladderless Commissioning™ and programming through Bluetooth-enabled smart devices for install-and-forget convenience
- AutoCal feature—automatic photocell target level calibration
- Meets energy code requirements including daylight harvesting and demand response

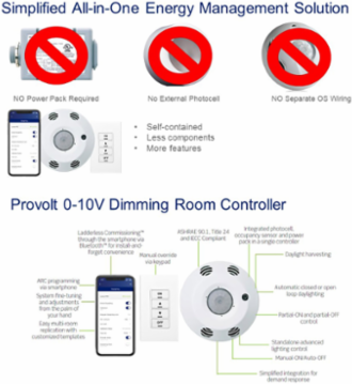

- The Provolt ™ 0-10V Dimming Room Controllers (PRC) are line voltage multi-technology sensors offering high-performance lighting controls , daylight harvesting and code compliant capabilities in one easy-to-install package. For true daylight harvesting applications, the integrated photocells provide consistent daylight harvesting levels by actively dimming the connected load(s) up and down in response to available natural light. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor-based technology to optimize performance. Ideal for standalone, code compliant room control, the devices automatically turn lights ON and keep them ON when occupancy is detected and automatically turn lights OFF when the space is vacant or unoccupied. Download the Provolt Bluetooth® Mobile App for easy configuration via any tablet or smart device. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL Listed, CE Compliant, NOM Certified, RoHS Compliant, NY LLC48 Compliant
Standards and CertificationsCan be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing, 0-10V dimming, daylight harvesting, partial-ON, partial-OFF, demand response and receptacle control requirements
Performance Specifications
- Coverage (Sq.Ft.)
- 2000
- Pattern
- 360°
Foot Candle Level0-200FC (0-2,000 LUX)
Mechanical Specifications
- Mounting Type
- Ceiling Mount
- Wiring
- Class 2 0-10V Wiring: 18 gauge stranded recommended, 0-10V sinking 50mA max - Class 2 Low Voltage Wiring: 18 gauge stranded recommended, maximum wiring: 500 feet total system, 0-28VDC, 2mA-50mA
SizeWidth 4.81" (122.21mm), Depth 2.39" (60.71mm)
Product Features
- Application
- Offices|Classrooms|Stairwells|Common Areas|Demand Response|Dimmed Loads|Auto ON/Auto OFF|Manual ON/Manual OFF|Code Compliance|Daylight Harvesting
- Feature
- Self-Contained 0-10V Dimming, Occupancy and Vacancy Sensing with Mobile App
- Mounting
- Ceiling Mount
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
ColorWhite
GradeCommercial
Product LineProvolt PRC
Sensor TypeOccupancy, Vacancy, Photocell
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
- Storage Temperature Range
- -15° to 160°F (-26° to 71°C)
Relative Humidity0% to 90% non-condensing
Electrical Specifications
- Current Consumption
- 120V: 8A, Electronic Ballast/LED Driver, 800 W (VA), Tungsten, Ballast, 1/4 HP - 277V: 5A, Electronic Ballast/LED Driver, 1200W (VA), Ballast, 1/3 HP
- Voltage
- 120-277 VAC
Frequency50/60Hz
Voltage Type0-10 VAC
Type
- Product Type
- Room Controller
